Citation: JIANG Cheng, GUO Hu, LI Ling-Hui, WANG Tao, FAN Xiao-Li, SONG Li, GONG Hao, XIA Wei, GAO Bin, HE Jian-Ping. Carbon Nanotube-Based Bimetallic Nitride Co₃W₃N for Electrocatalytic Synthesis of Ammonia under Ambient Condition[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(3): 467-474. doi: 10.11862/CJIC.2020.047 shu

Carbon Nanotube-Based Bimetallic Nitride Co₃W₃N for Electrocatalytic Synthesis of Ammonia under Ambient Condition

Jiangsu Key Laboratory of Materials and Technology for Energy Conversion, College of Materials Science and Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Corresponding author: HE Jian-Ping, jianph@nuaa.edu.cn
Received Date: 9 October 2019
Revised Date: 5 December 2019

Figures(8)

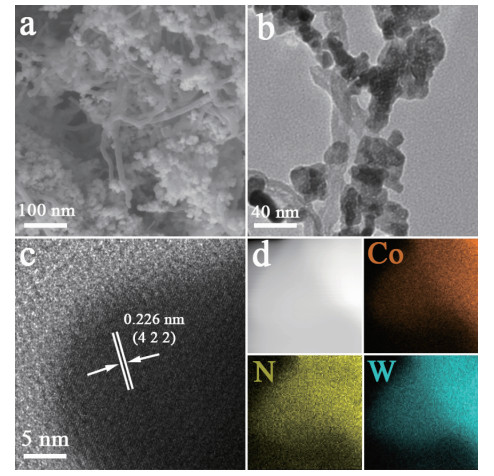

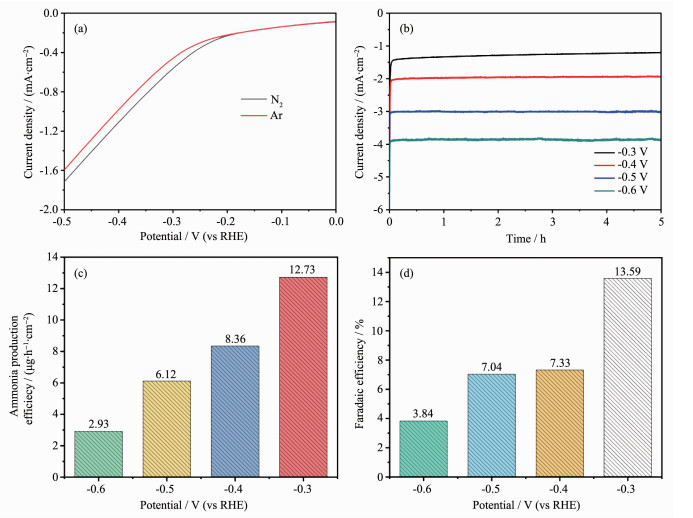

A kind of cheap carbon nanotube-based double transition metal nitrides Co₃W₃N/CNTs composite was prepared by hydrothermal and subsequent heat treatment under ammonia. By adjusting the proportion the of pre oxidation of CNTs and precursor CoWO₄ and ammonia heat treatment temperature, the Co₃W₃N in uniform load on the surface of the CNTs. Scanning electron microscopy (SEM) and transmission electron microscope (TEM) test results showed that the catalyst particles evenly dispersed on the surface of CNTs, due to oxidation CNTs for the good dispersion growth of precursor. The Co₃W₃N particle size on the CNTs was about 20 nm, which was significantly smaller than that of unsupported Co₃W₃N (100 nm). The electrochemical tests was carried out in a N₂ saturated 0.01 mol·L^-1 H₂SO₄ solution under different potential, and the material achieved the highest ammonia production rate and Faraday efficiency at -0.3 V, which reached approximately 12.73 μg·h^-1·cm^-2 and 13.59%, respectively. Under the same conditions, the ammonia production rate and Faraday efficiency of pure phase Co₃W₃N were only 1.08 μg·h^-1·cm^-2 and 1.76%. The Co₃W₃N/CNTs sample showed excellent NRR (nitrogen reduction reaction) performance because of the Co₃W₃N as the active site and the synergistic effect of Co₃W₃N and CNTs.
- nitrogen reduction reaction,
- cobalt tungsten nitrides,
- electrocatalysis,
- ambient condition
1. [1]
  Wang S Y, Ichihara F, Pang H, et al. Adv. Funct. Mater., 2018, 28(50):1803309 doi: 10.1002/adfm.201803309
2. [2]
  Han J R, Liu Z C, Ma Y J, et al. Nano Energy, 2018, 52:264-270 doi: 10.1016/j.nanoen.2018.07.045
3. [3]
  Zhao R B, Xie H T, Chang L, et al. EnergyChem, 2019, 1:100011 doi: 10.1016/j.enchem.2019.100011
4. [4]
  Peng Y, Lu B Z, Chen S W. Adv. Mater., 2018, 30(48):1801995 doi: 10.1002/adma.201801995
5. [5]
  Skulason E, Bligaard T, Gudmundsdóttir S, et al. Phys. Chem. Chem. Phys., 2012, 14(3):1235-1245 doi: 10.1039/C1CP22271F
6. [6]
  Chen X Z, Zhao X J, Kong Z Z, et al. J. Mater. Chem. A, 2018, 6(44):21941-21948 doi: 10.1039/C8TA06497K
7. [7]
  Cheng H, Ding L X, Chen G F, et al. Adv. Mater., 2018, 30(46):1803694 doi: 10.1002/adma.201803694
8. [8]
  Li Q, He L, Sun C, et al. J. Phys. Chem. C, 2017, 121(49):27563-27568 doi: 10.1021/acs.jpcc.7b10522
9. [9]
  Zhong H X, Zhang H M, Liang Y M, et al. J. Power Sources, 2007, 164(2):572-577 doi: 10.1016/j.jpowsour.2006.11.080
10. [10]
  Li G R, Song J, Pan G L, et al. Energy Environ. Sci., 2011, 4(5):1680-1683 doi: 10.1039/c1ee01105g
11. [11]
  Zhang N, Jalil A, Wu D, et al. J. Am. Chem. Soc., 2018, 140(30):9434-9443 doi: 10.1021/jacs.8b02076
12. [12]
  Minteer S D, Christopher P, Linic S. ACS Energy Lett., 2018, 4(1):163-166
13. [13]
  Chen S, Perathoner S, Ampelli C, et al. Angew. Chem. Int. Ed., 2017, 56(10):2699-2703 doi: 10.1002/anie.201609533
14. [14]
  GUO Hu, LI Ling-Hui, WANG Tao, et al. Chinese J. Inorg. Chem., 2018, 34(11):2032-2040 doi: 10.11862/CJIC.2018.263
15. [15]
  Gao X, Wen Y J, Qu D, et al. ACS Sustainable Chem. Eng., 2018, 6(4):5342-5348 doi: 10.1021/acssuschemeng.8b00110
16. [16]
  Li L Q, Tang C, Xia B Q, et al. ACS Catal., 2019, 9(4):2902-2908 doi: 10.1021/acscatal.9b00366
17. [17]
  Han Y, Wang Y G, Chen W, et al. J. Am. Chem. Soc., 2017, 139(48):17269-17272 doi: 10.1021/jacs.7b10194
18. [18]
  Xia W, Tang J, Li J, et al. Angew. Chem., Int. Ed., 2019, 58(38):13354-13359 doi: 10.1002/anie.201906870
19. [19]
  Kong Y, Li Y, Yang B, et al. J. Mater. Chem. A, 2019, 7(46):26272-26278 doi: 10.1039/C9TA06076F
20. [20]
  Chen G F, Cao X, Wu S, et al. J. Am. Chem. Soc., 2017, 139(29):9771-9774 doi: 10.1021/jacs.7b04393
