Citation: XIE Fang, REN Yu, ZHOU Yu-Qing, SUN Yue-Ming, WANG Yu-Qiao. Preparation and Electrochemical Properties of ZIF-Skeleton Double-Shell Nanocage CoS/NiCo₂S₄[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(9): 1635-1641. doi: 10.11862/CJIC.2019.196 shu

Preparation and Electrochemical Properties of ZIF-Skeleton Double-Shell Nanocage CoS/NiCo₂S₄

1.
Institute of Advanced Materials, School of Chemistry and Chemical Engineering, Southeast University, Nanjing 211189, China
2.
School of Chemical Engineering and Materials, Nanjing Polytechnic Institute, Nanjing 210048, China

Corresponding author: WANG Yu-Qiao, yqwang@seu.edu.cn
Received Date: 9 May 2019
Revised Date: 12 June 2019

Figures(5)

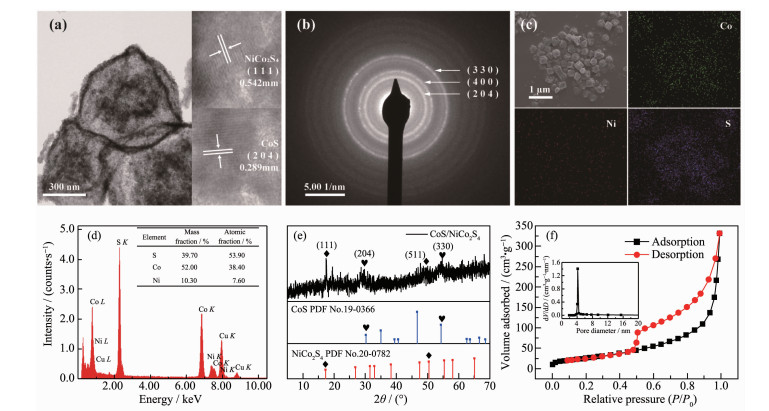

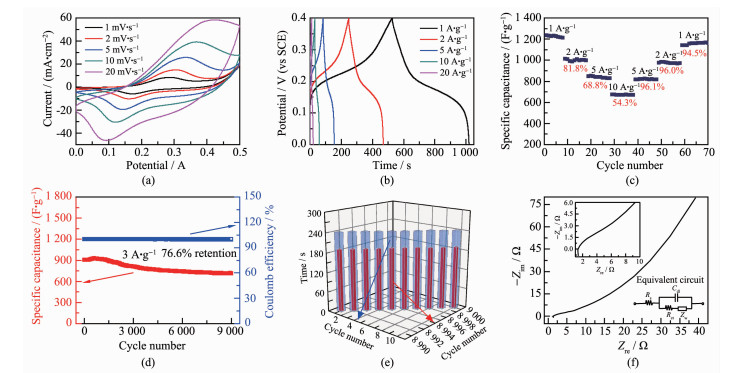

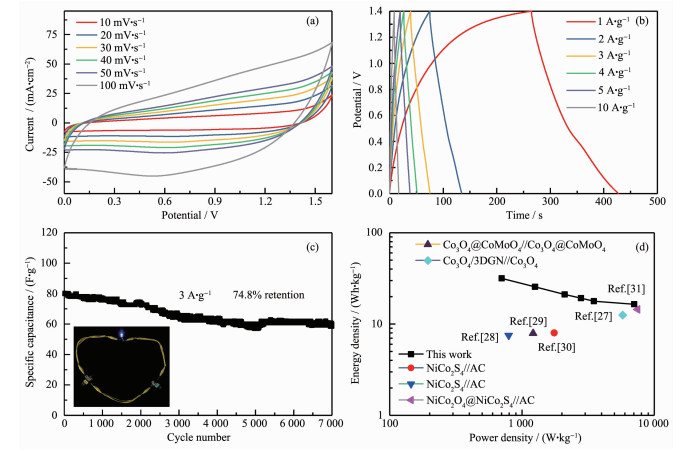

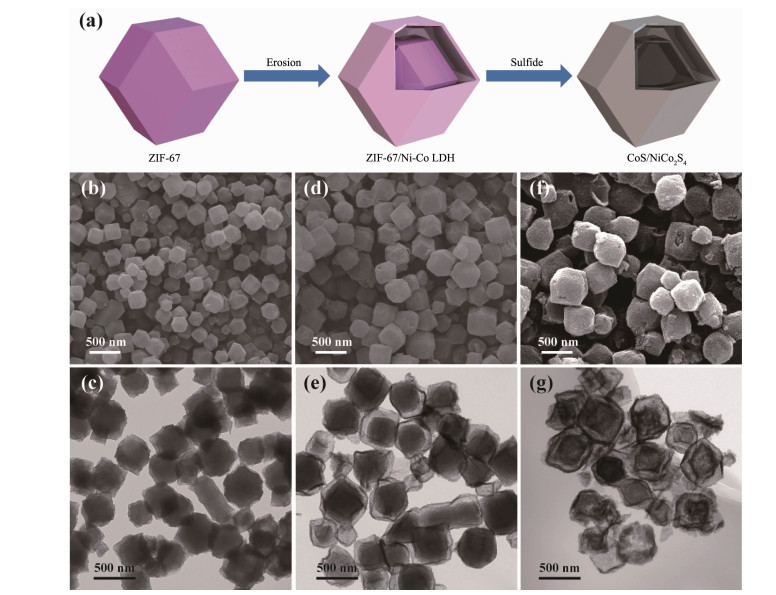

Double-shell nanocage CoS/NiCo₂S₄ was prepared by ion erosion and chemical vapor deposition using ZIF-67. The supercapacitor based on CoS/NiCo₂S₄ exhibited high specific capacitance and stability, due to its high specific surface area (98 m²·g^-1), abundant interconnected channel (4 nm pole diameter), and stable cavity skeleton. The three-electrode cell based on CoS/NiCo₂S₄/Ni foam maintained 76.6% initial capacitance at 3 A·g^-1 current density after 9 000 cycles. The cell gained a specific capacitance of 1 230 F·g^-1 at 1 A·g^-1 due to increasing active sites and rapid electron/ion transports for Faradaic reactions. The results can reflect the superior electrochemical performance of double-shell nanocage CoS/NiCo₂S₄ on specific capacitance and cycling stability. The supercapacitor was assembled by CoS/NiCo₂S₄/Ni foam, active carbon electrode and KOH/polyvinyl alcohol gel electrolyte. The device retention was 74.8% at a current density of 3 A·g^-1 after 7 000 cycles. The device also achieved an energy density of 16.5 Wh·kg^-1 at a high power density of 7 056 W·kg^-1. Even at a power density of 702 W·kg^-1, a high energy density of 31.6 Wh·kg^-1 can be obtained. The asymmetric device exhibited excellent energy density, power density and cycle stability. In a practical application testing, two series-connected solid-state supercapacitors provided stable electrical energy, enabling the LEDs to be successfully illuminated.
- sulfur,
- electrochemistry,
- mesoporous materials,
- cavity,
- cycling stability,
- specific capacitance
1. [1]
  Jiang H, Lee P S, Li C Z. Energy Environ. Sci., 2013, 6(1):41-53
2. [2]
  XIA Jing-Zhu, WANG Li-Wei, HU Ren-Zhi, et al. Chinese J. Inorg. Chem., 2014, 30(9):2099-2104
3. [3]
  ZHOU Qi, LI Zhi-Yang, ZHENG Bin. Chinese J. Inorg. Chem., 2018, 34(6):1103-1109
4. [4]
  Jiang Y Q, Liu J P. Energy Environ. Mater., 2019, 2(1):30-37 doi: 10.1002/eem2.12028
5. [5]
  Wang F X, Wu X W, Yuan X H, et al. Chem. Soc. Rev., 2017, 46:6816-6854 doi: 10.1039/C7CS00205J
6. [6]
  Wang Y Q, Yang D W, Zhou T Y, et al. Nanotechnology, 2017, 28(46):1-7
7. [7]
  Wang K, Yan R, Tian X D, et al. Electrochim. Acta, 2019, 302:78-91 doi: 10.1016/j.electacta.2019.02.015
8. [8]
  Kumar K A, Pandurangan A, Arumugam S, et al. Sci. Rep., 2019, 9:1-16 doi: 10.1038/s41598-018-37186-2
9. [9]
  Liao Q Y, Li N, Jin S X, et al. ACS Nano, 2015, 9(5):5310-5317 doi: 10.1021/acsnano.5b00821
10. [10]
  Zhai T, Wan L M, Sun S, et al. Adv. Mater., 2017, 29(7):1-8
11. [11]
  Hu N, Huang L, Gong W H, et al. ACS Sustainable Chem. Eng., 2018, 6(12):16933-16940 doi: 10.1021/acssuschemeng.8b04265
12. [12]
  Zhang S W, Yin B S, Jiang H, et al. Dalton Trans., 2015, 44(5):2409-2415 doi: 10.1039/C4DT03270E
13. [13]
  Yan M L, Yao Y D, Wen J Q, et al. ACS Appl. Mater. Interfaces, 2016, 8(37):24525-24535 doi: 10.1021/acsami.6b05618
14. [14]
  Li C, Li J Q, Wang Z J, et al. Inorg. Chem. Front., 2017, 4(2):309-314
15. [15]
  Chang X W, Li W L, Liu Y H, et al. J. Colloid Interface Sci., 2019, 538:34-44 doi: 10.1016/j.jcis.2018.11.080
16. [16]
  Yu X Y, Yu L, Lou X W. Adv. Energy Mater., 2016, 6(3):1-14
17. [17]
  Salunkhe R R, Tang J, Kamachi Y, et al. ACS Nano, 2015, 9(6):6288-6296 doi: 10.1021/acsnano.5b01790
18. [18]
  Yu L, Yang J F, Lou X W. Angew. Chem. Int. Ed., 2016, 55(43):13422-13426 doi: 10.1002/anie.201606776
19. [19]
  Hu H, Guan B Y, Xia B Y, et al. J. Am. Chem. Soc., 2015, 137(16):5590-5595 doi: 10.1021/jacs.5b02465
20. [20]
  Wu Y Z, Meng J S, Li Q, et al. Nano Res., 2017, 10(7):2364-2376 doi: 10.1007/s12274-017-1433-6
21. [21]
  Liu Y K, Jiang G H, Sun S Q, et al. J. Alloys Compd., 2018, 731:560-568 doi: 10.1016/j.jallcom.2017.10.078
22. [22]
  Zhang Y Y, Xu J, Yang X S, et al. Chem. Eng. J., 2018, 333:111-121 doi: 10.1016/j.cej.2017.09.155
23. [23]
  Zhu J, Zhou W T, Zhou Y Z, et al. J. Electron. Mater., 2019, 3:1531-1539
24. [24]
  Wang D Z, Zhu W L, Yuan Y, et al. J. Alloys Compd., 2018, 735:1505-1513 doi: 10.1016/j.jallcom.2017.11.249
25. [25]
  Wu Z B, Pu X L, Ji X B, et al. Electrochim. Acta, 2015, 174:238-245 doi: 10.1016/j.electacta.2015.06.011
26. [26]
  Yu F, Chang Z, Yuan X H, et al. J. Mater. Chem. A, 2018, 6:5856-5861 doi: 10.1039/C8TA00835C
27. [27]
  Deng X Y, Li J J, Zhu S, et al. J. Alloys Compd., 2017, 693:16-24 doi: 10.1016/j.jallcom.2016.09.096
28. [28]
  Xiong X H, Waller G, Ding D, et al. Nano Energy, 2015, 16:71-80 doi: 10.1016/j.nanoen.2015.06.018
29. [29]
  Wang J, Zhang X, Wei Q L, et al. Nano Energy, 2016, 19:222-233 doi: 10.1016/j.nanoen.2015.10.036
30. [30]
  Liu C, Wu X. Mater. Res. Bull., 2018, 103:55-62 doi: 10.1016/j.materresbull.2018.03.014
31. [31]
  Rong H, Chen T, Shi R, et al. ACS Omega, 2018, 3(5):5634-5642 doi: 10.1021/acsomega.8b00742
