Citation: YAN Xin-Kan, DING Shi-Hua, ZHANG Xiao-Yun, HUANG Long, ZHANG Yun. Effect of Li₂O-Na₂O-B₂O₃-SiO₂ Sintering Aids on Structure and Dielectric Properties of BaAl₂Si₂O₈ Ceramics[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(8): 1357-1362. doi: 10.11862/CJIC.2019.152 shu

Effect of Li₂O-Na₂O-B₂O₃-SiO₂ Sintering Aids on Structure and Dielectric Properties of BaAl₂Si₂O₈ Ceramics

School of Materials Science and Engineering, Xihua University, Chengdu 610039, China

Corresponding author: DING Shi-Hua, dshihua@263.net
Received Date: 5 March 2019
Revised Date: 8 May 2019

Figures(5)

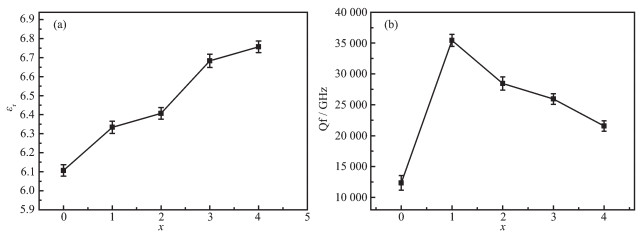

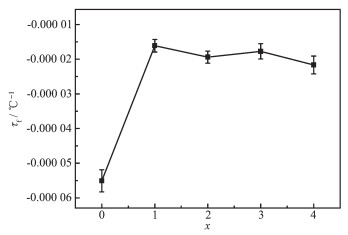

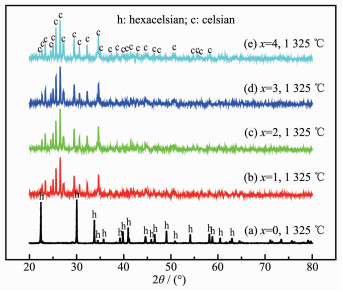

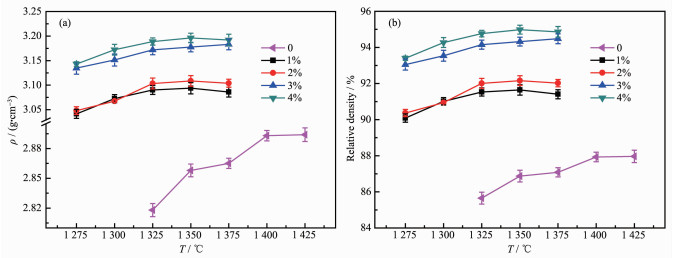

BaO-Al₂O₃-SiO₂ (BAS)-x%(w/w) Li₂O-Na₂O-B₂O₃-SiO₂ (LNBS) (x=0, 1, 2, 3, 4) ceramics were prepared by solid state route. The effect of LNBS sintering aids on the microstructure and dielectric properties of BAS system ceramics were studied. Deviation between theoretical and experimental permittivity (ε_r) of BAS was discussed. The results showed that LNBS sintering aids could reduce the sintering temperature from 1 400 to 1 325℃, and the O^2- vacancy or Ba²⁺ were formed by Li⁺ substituting for Al³⁺ or Li⁺ entering into the single four-membered-ring (S4R) to promote the transformation of hexacelsian to celsian of BAS. The density, quality factor (Qf) value, the temperature coefficient of resonant frequency (τ_f) of BAS-x% LNBS ceramics have been improved by adding moderate LNBS sintering aids. The BAS-1% LNBS sintered at 1 325℃ obtained well dielectric properties:Qf=35 199 GHz, ε_r=6.37 and τ_f=-1.613×10^-5℃^-1.
- LNBS sintering aids,
- BaAl₂Si₂O₈,
- celsian,
- microwave dielectric properties
1. [1]
  Lei W, Ran A, Wang X C, et al. Mater. Res. Bull., 2014, 50(2):235-239
2. [2]
  Krzmanc M M, Valant M, Suvorov D. J. Eur. Ceram. Soc., 2007, 27(2/3):1181-1185
3. [3]
  Khater G A, Idris M H. Ceram. Int., 2006, 32(7):833-838 doi: 10.1016/j.ceramint.2005.06.007
4. [4]
  Yang X J, Zhang Y, Ding S H, et al. Ceram. Int., 2018, 263:1-3
5. [5]
  Hyatt M J, Bansal N P. J. Mater. Sci., 1996, 31(1):172-184 doi: 10.1007/BF00355142
6. [6]
  ANG Ran, LEI Wen, LYU Wen-Zhong. Journal of Synthetic Crystals, 2012, 41(S1):305-308
7. [7]
  LIN Jian-Hua(林建华), JING Xi-Ping(荆西平). Inorganic Material Chemistry(无机材料化学). Beijing:Peking Univer-sity Press, 2006:275-279
8. [8]
  Grabovickic R. IEEE Trans. Appl. Supercond., 1999, 9(3):4607-4612 doi: 10.1109/77.791916
9. [9]
  Shannon R D, Prewitt C T. Acta Crystallogr. Sect. B:Struct. Sci., Cryst. Eng. Mater., 1969, 25(5):925-946 doi: 10.1107/S0567740869003220
10. [10]
  Lee K T, Aswath P B. Mater. Sci. Eng., 2003, 352:1-7 doi: 10.1016/S0921-5093(02)00118-1
11. [11]
  Jian X T, Zhang Q L, Yang H, et al. J. Am. Ceram. Soc., 2007, 90(3):845-849 doi: 10.1111/j.1551-2916.2006.01461.x
12. [12]
  Pollet M, Marinel S. J. Eur. Ceram. Soc., 2003, 23(11):1925-1933 doi: 10.1016/S0955-2219(03)00013-X
13. [13]
  Ostrom R M, Allen F G. Appl. Phys. Lett., 1986, 48(3):221-223 doi: 10.1063/1.96801
14. [14]
  Shannon R D. J. Appl. Phys., 1993, 73(1):348-366 doi: 10.1063/1.353856
15. [15]
  Allameh S M, Sandhage K H. J. Am. Ceram. Soc., 2010, 80(12):3109-3126
16. [16]
  Zhou H F, Wang H, Li K C, et al. J. Mater. Sci.-Mater. Electron, 2009, 20(3):283-288 doi: 10.1007/s10854-008-9721-2
17. [17]
  Zhang S, Su H, Zhang H W, et al. Ceram. Int., 2016, 42(14):15242-15246 doi: 10.1016/j.ceramint.2016.06.161
18. [18]
  Huang C L, Chen J Y. J. Am. Ceram. Soc., 2010, 92(3):675-678
19. [19]
  NI Er-Hu(倪尔瑚). The Microwave Measurement of Dielectric Resonators(介质谐振器的微波测量). Beijing:Science Press, 2006:2-6
