Citation: XU Meng-Xia, WANG Yi-Bo, DENG Chang-Shun, DING Li-Ping, XU Yi-Da, XUE Nian-Hua, GUO Xue-Feng, PENG Lu-Ming, DING Wei-Ping. Isobutane/Butene Alkylation on Supported Phosphotungstic Acid Promoted by Hexadecylphosphate[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(8): 1396-1402. doi: 10.11862/CJIC.2019.145 shu

Isobutane/Butene Alkylation on Supported Phosphotungstic Acid Promoted by Hexadecylphosphate

Key Lab of Mesoscopic Chemistry, Ministry of Education; School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210023, China

Corresponding author: DING Wei-Ping, dingwp@nju.edu.cn
Received Date: 20 March 2019
Revised Date: 18 April 2019

Figures(4)

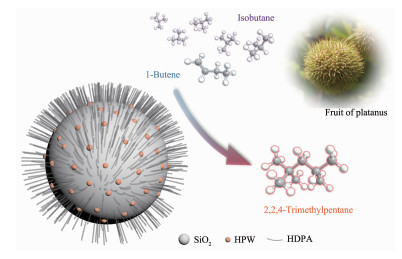

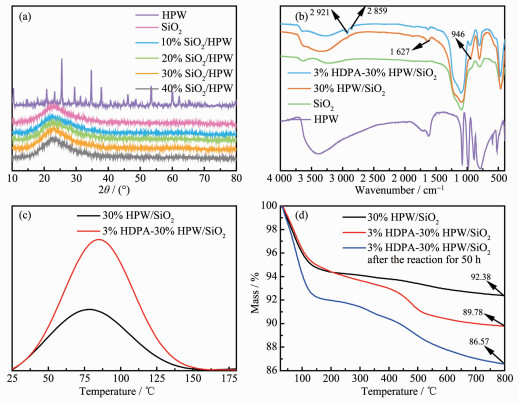

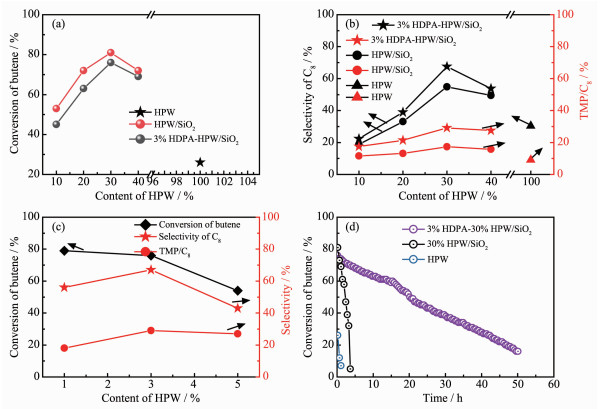

The alkylation of isobutane/butene is an important reaction to produce high-octane gasoline. Replacement of liquid acid by solid acid to catalyze this reaction is the focus of the study. In this work, solid acid catalysts with hydrophobic surface were prepared by decorating hexadecylphosphate (HDPA) on SiO₂-supported heteropolyacids samples with impregnatiom method, whose structure is similar as the fruit of platanus. These catalysts were characterized by X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), transmission electron microscopy (TEM), N₂ and i-C₄H₁₀ sorption. And the performances of the catalysts for the alkylation of isobutane/butene were evaluated using a fixed bed micro-reactor. The results show that the HDPA-modification enhances the adsorption of the hydrocarbon reactants on the surface of catalyst, which helps to reduce the polymerization of butene and to inhibit the deposition of coke on the surface of catalyst, leading to an improved selectivity of high-octane products and prolonged life of catalysts. The catalyst had an optimal catalytic performance when the HPW load was 30%(w/w) and the modified amount of HDPA is 3%(w/w).
- isobutane,
- butene,
- alkylation,
- phosphotungstic acid,
- hexadecylphosphate,
- enhanced adsorption
1. [1]
  Liu Z, Tang X J, Hu L F, et al. China Pet. Process. Petrochem. T., 2016, 18(2):63-69
2. [2]
  SUN Wen-Dong, ZHAO Zhen-Bo, WU Yue, et al. Acta Petrolei Sinica:Petroleum Processing Section, 2001, 17(3):1-8
3. [3]
  Aschauer S, Schilder L, Korth W, et al. Catal. Lett., 2011, 141(10):1405-1419 doi: 10.1007/s10562-011-0675-2
4. [4]
  Cui P, Zhao G Y, Ren H L, et al. Catal. Today, 2013, 200:30-35 doi: 10.1016/j.cattod.2012.06.008
5. [5]
  Albright L F, Spalding M A, Kopser C G, et al. Ind. End. Chem. Res., 1988, 27(3):386-391 doi: 10.1021/ie00075a004
6. [6]
  Petkovic L M, Ginosar D M. Appl. Catal. A:Gen., 2004, 275:235-245 doi: 10.1016/j.apcata.2004.07.037
7. [7]
  Yoo K, Burckle E C, Smirniotis P G. Catal. Lett., 2001, 74:85-90 doi: 10.1023/A:1016665611331
8. [8]
  Blasco T, Corma A, Martinez A, et al. J. Catal., 1998, 177(2):306-313 doi: 10.1006/jcat.1998.2105
9. [9]
  Platon A, Thomson W J. Appl. Catal. A:Gen., 2005, 282(1/2):93-100
10. [10]
  Smirnova M Y, Toktarev A V, Ayupov A B, et al. Catal. Today, 2010, 152(1/2/3/4):17-23
11. [11]
  ZHANG Long, ZHANG Ji-Yan, TENG Li-Hua, et al. J. Mol. Catal., 2003, 1:56-60 doi: 10.3969/j.issn.1001-3555.2003.01.012
12. [12]
  Yoo K, Burckle E C, Smirniotis P G. J. Catal., 2002, 211(1):6-18
13. [13]
  Smirnova M Y, Urguntsev G A, Ayupov A B, et al. Appl. Catal. A:Gen., 2008, 344(1/2):107-113
14. [14]
  Gore R B, Thomson W J. Appl. Catal. A:Gen., 1998, 168(1):23-32 doi: 10.1016/S0926-860X(97)00341-4
15. [15]
  Chellappa A S, Miller R C, Thomson W J. Appl. Catal. A:Gen., 2001, 209(1/2):359-374
16. [16]
  Klingmann R, Josl R, Traa Y, et al. Appl. Catal. A:Gen., 2005, 281(1/2):215-223
17. [17]
  Shen W, Gu Y, Xu H L, et al. Appl. Catal. A:Gen., 2010, 377(1/2):1-8
18. [18]
  RUAN Yu-Hong, LIU Yao-Fang, LIU Zhi-Chang. Chin. J. Catal., 2004, 25(12):948-954 doi: 10.3321/j.issn:0253-9837.2004.12.006
19. [19]
  ZHAO Zhen-Bo, SUN Wen-Dong, YANG Xiang-Guang, et al. Acta Phys.-Chim. Sin., 2000, 16(7):613-620 doi: 10.3866/PKU.WHXB20000708
20. [20]
  Sahoo Y, Pizem H, Fried T, et al. Langmuir, 2001, 17(25):7907-7911 doi: 10.1021/la010703+
