Citation: DONG Qing-Yu, MAO Ya-Yun, GUO Feng, CHENG Zhen-Jie, DONG Hou-Cai, CHEN Peng, KANG Tuo, WU Xiao-Dong, SHEN Yan-Bin, CHEN Li-Wei. Tris(trimethylsilane) Phosphite Additive for Improving the High Voltage Cycling Performance of a Nickel-Rich Layered Oxide Cathode Material[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(6): 1050-1058. doi: 10.11862/CJIC.2019.117 shu

Tris(trimethylsilane) Phosphite Additive for Improving the High Voltage Cycling Performance of a Nickel-Rich Layered Oxide Cathode Material

DONG Qing-Yu ^1,2 ,
MAO Ya-Yun ^2,3 ,
GUO Feng ^1,2 ,
CHENG Zhen-Jie ^1,2 ,
DONG Hou-Cai ^2,3 ,
CHEN Peng ^2,4 ,
KANG Tuo ² ,
WU Xiao-Dong ^1,2 ,
SHEN Yan-Bin ^1,2,, ,
CHEN Li-Wei ²

1.
School of Nano Technology and Nano Bionics, University of Science and Technology of China, Hefei 230026, China
2.
Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, Jiangsu 215123, China
3.
School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
4.
Nano Science and Technology Institute, University of Science and Technology of China, Suzhou, Jiangsu 215123, China

Corresponding author: SHEN Yan-Bin, ybshen2017@sinano.ac.cn
Received Date: 18 January 2019
Revised Date: 14 March 2019

Figures(6)

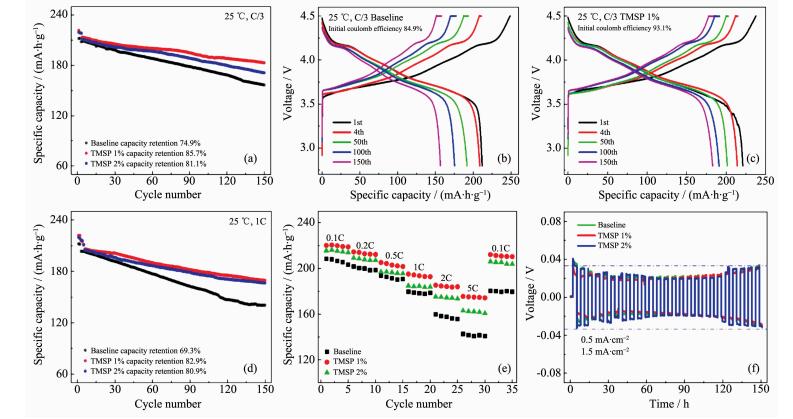

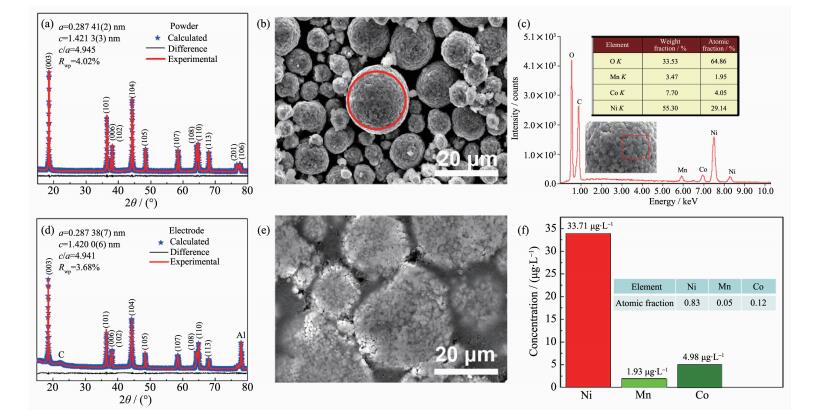

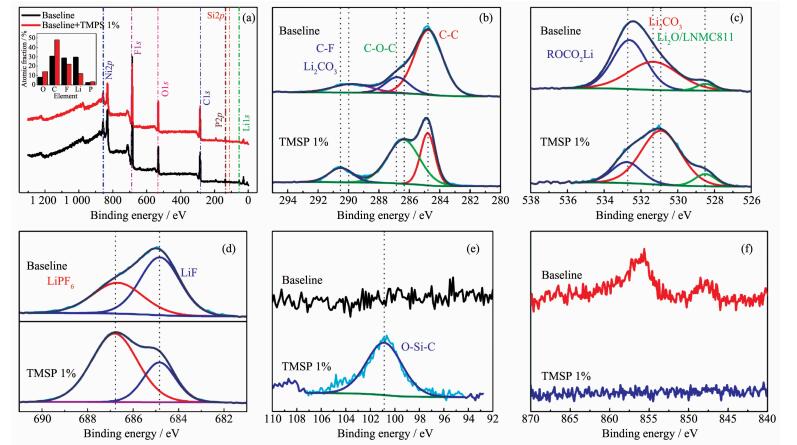

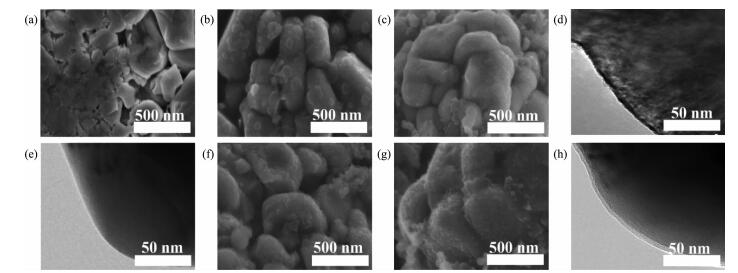

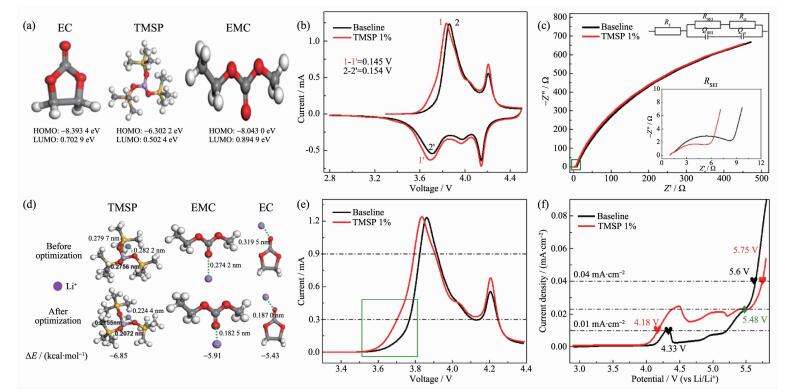

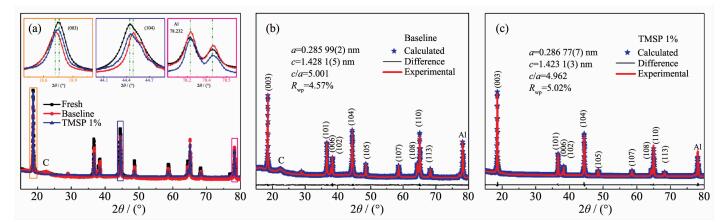

Nickel-rich layered oxide cathode material, Li-Ni_xMn_yCo_1-x-yO₂ (x ≥ 0.8), has a specific capacity as high as 220 mAh·g^-1 (x=0.83, 0.1C, 1C=180 mA·g^-1) when being charged to 4.5 V (vs Li/Li⁺), thus it is a very attractive material for the development of high energy density lithium ion batteries. In this work, we have regulated the composition and structure of the cathodeelectrolyte interface (CEI)film on the surface of a nickel-rich layered oxide cathode material (LiNi_0.83Mn_0.05Co_0.12O₂) by adding tris(trimethylsilane) phosphite (TMSP) in the electrolyte and investigated how the additive affect the electrochemical performance of the Li‖LiNi_0.83Mn_0.05Co_0.12O₂ cell. The TMSP additive helps producing a CEI layer on the surface of the LiNi_0.83Mn_0.05Co_0.12O₂ cathode material by electrochemical characterization methods, theoretical calculation, scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS), and X-ray diffraction (XRD). The CEI layer wasfound to be thin and uniformly distributed on the cathode surface even after 150 cycles at 1C between 2.8 to 4.5 V (vs Li/Li⁺), and it was rich in Li₂CO₃ and Si-O-C, but limited in electrolyte decomposition products, i.e. ROCO₂Li and LiF. The CEI layer effectively reduced the polarization of the Li‖LiNi_0.83Mn_0.05Co_0.12O₂ cell during cycling which could be due to uniform lithium diffusion that enabled by the uniform CEI thickness, and it was also able to protect the cathode material from structure damaging by suppressing the dissolution of transitional metal ions, resulting in improved high voltage (4.5 V vs Li/Li⁺) cycling performance and rate capability of the Li‖LiNi_0.83Mn_0.05Co_0.12O₂ cells.
- nickel-rich layered oxide,
- tris(trimethylsilane) phosphite,
- lithium ion battery,
- high energy density
1. [1]
  Armand M, Tarascon J M. Nature, 2008, 451(7179):652-657 doi: 10.1038/451652a
2. [2]
  Liu Z L, Yu A S, Lee J Y, et al. J. Power Sources, 1999, 81:416-419
3. [3]
  Li W D, Kim U H, Dolocan A, et al. ACS Nano, 2017, 11(6):5853-5863 doi: 10.1021/acsnano.7b01494
4. [4]
  Zheng F H, Yang C H, Xiong X H, et al. Angew. Chem. Int. Ed., 2015, 54(44):13058-13062 doi: 10.1002/anie.v54.44
5. [5]
  Wu Z Z, Ji S P, Zheng J X, et al. Nano Lett., 2015, 15(8):5590-5596 doi: 10.1021/acs.nanolett.5b02246
6. [6]
  Kasnatscheew J, Evertz M, Wagner R, et al. J. Phys. Chem. C, 2017, 121(3):1521-1529 doi: 10.1021/acs.jpcc.6b11746
7. [7]
  Xu K. Chem. Rev., 2004, 104(10):4303-4417 doi: 10.1021/cr030203g
8. [8]
  Zuo D X, Tian G L, Li X, et al. J. Alloys Compd., 2017, 706:24-40 doi: 10.1016/j.jallcom.2017.02.230
9. [9]
  Park K, Yu S, Lee C, et al. J. Power Sources, 2015, 296:197-203 doi: 10.1016/j.jpowsour.2015.07.052
10. [10]
  Li Y, Li W D, You Y, et al. Adv. Energy Mater., 2018, 8(29):1801957 doi: 10.1002/aenm.201801957
11. [11]
  Deng B W, Sun D M, Wan Q, et al. Acta Chim. Sinica, 2018, 76(4):259-277 doi: 10.6023/A17110517
12. [12]
  Komaba S, Ishikawa T, Yabuuchi N, et al. ACS Appl. Mater. Interfaces, 2011, 3(11):4165-4168 doi: 10.1021/am200973k
13. [13]
  Rong H B, Xu M Q, Xing L D, et al. J. Power Sources, 2014, 261:148-155 doi: 10.1016/j.jpowsour.2014.03.032
14. [14]
  Wang Z S, Xing L D, Li J H, et al. Electrochim. Acta, 2015, 184:40-46 doi: 10.1016/j.electacta.2015.10.044
15. [15]
  Yan G C, Li X H, Wang Z X, et al. J. Power Sources, 2014, 248:1306-1311 doi: 10.1016/j.jpowsour.2013.10.037
16. [16]
  Yim T, Han Y K. ACS Appl. Mater. Interfaces, 2017, 9(38):32851-32858 doi: 10.1021/acsami.7b11309
17. [17]
  Xu G J, Pang C G, Chen B B, et al. Adv. Energy Mater., 2018, 8(9):1701398 doi: 10.1002/aenm.v8.9
18. [18]
  Noh H J, Youn S, Yoon C S, et al. J. Power Sources, 2013, 233:121-130 doi: 10.1016/j.jpowsour.2013.01.063
19. [19]
  Goodenough J B, Kim Y. Chem. Mater., 2009, 3(22):587-603
20. [20]
  Han Y K, Yoo J, Yim T, et al. J. Mater. Chem. A, 2015, 3(20):10900-10909 doi: 10.1039/C5TA01253H
21. [21]
  Qian Y X, Niehoff P, Borner M, et al. J. Power Sources, 2016, 329:31-40 doi: 10.1016/j.jpowsour.2016.08.023
22. [22]
  Liao B, Li H Y, Xu M Q, et al. Adv. Energy Mater., 2018, 8(22):1800802 doi: 10.1002/aenm.v8.22
23. [23]
  Aurbach D, Levi M D, Levi E, et al. J. Phys. Chem. B, 1997, 101(12):2195-2206 doi: 10.1021/jp962815t
24. [24]
  Verma P, Maire P, Novak P, et al. Electrochim. Acta, 2010, 55(22):6332-6341 doi: 10.1016/j.electacta.2010.05.072
