Citation: LI Si-Han, LI Xiao-Qing, HU Feng-Teng, ZHANG Chao, YAN Xin-Huan. Catalytic Oxidation of Toluene with Low Loading Bimetallic Au@Pt Core-Shell Catalyst[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(3): 553-562. doi: 10.11862/CJIC.2019.055 shu

Catalytic Oxidation of Toluene with Low Loading Bimetallic Au@Pt Core-Shell Catalyst

State Key Laboratory Breeding Base of Green Chemistry-Synthesis Technology, Zhejiang University of Technology, Hangzhou 310014, China

Corresponding author: YAN Xin-Huan, xhyan@zjut.edu.cn
Received Date: 11 October 2018
Revised Date: 10 December 2018

Figures(8)

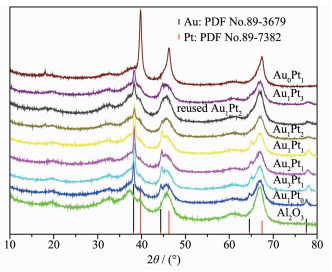

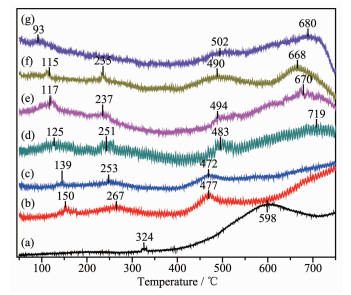

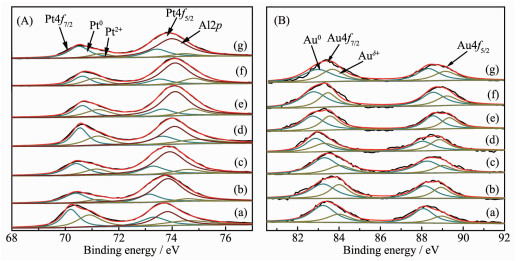

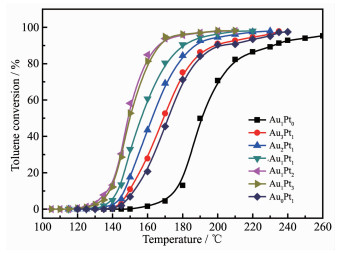

Highly active bimetallic Au@Pt core-shell catalysts were prepared by using direct-adsorption method, in which uniformly dispersed Au@Pt nanoparticles synthesized using two-step liquid-phase hydrogen reduction method were directly loaded on support. The performance of the catalysts for catalytic oxidation of toluene was evaluated. The catalysts were characterized by transmission electron microscopy (TEM) in conjunction with energy dispersive spectroscopy (EDS), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), N₂ adsorption-desorption and temperature-programmed reduction (H₂-TPR). As a result, the bimetallic Au@Pt core-shell catalysts exhibited higher catalytic activity compared with monometallic Au or Pt catalyst, and the Au₁@Pt₂/Al₂O₃ core-shell catalyst showed outstanding catalytic activity, selectivity and stability among the bimetallic catalysts. The temperature for conversion of 98% toluene (T₉₈) was 195℃ under the condition of toluene volume fraction at 1×10^-3 and the gas hourly space velocity of 18 L·g^-1·h^-1.The XPS results illustrated that the enhancement of catalytic activity is attributed to the presence of Au underneath Pt shell where electron exchange from Au to Pt has promoted the formation of active oxygen species on Pt, which facilitates the oxidation of toluene. In addition, the active components of the catalyst mainly existed in the form of Au⁰ and Pt⁰, and the strong interaction between the Au@Pt nanoparticles and the support was observed.
- bimetallic,
- Au@Pt,
- core-shell,
- VOCs,
- toluene,
- catalytic oxidation
1. [1]
  Salar-García M J, Ortiz-Martínez V M, Hernández-Fernández F J, et al. J. Hazard. Mater., 2017, 321:484-499 doi: 10.1016/j.jhazmat.2016.09.040
2. [2]
  Scirè S, Liotta L F. Appl. Catal. B:Environ., 2012, 125:222-246 doi: 10.1016/j.apcatb.2012.05.047
3. [3]
  Kamal M S, Razzak S A, Hossain M M. Atmos. Environ., 2016, 140:117-134 doi: 10.1016/j.atmosenv.2016.05.031
4. [4]
  Huang H, Xu Y, Feng Q. Catal. Sci. Technol., 2015, 5:2649-2669 doi: 10.1039/C4CY01733A
5. [5]
  Zhang Z X, Jiang Z, Weng F S. Catal. Today, 2016, 264:270-278 doi: 10.1016/j.cattod.2015.10.040
6. [6]
  Son Y S. Chem. Eng. J., 2017, 316:609-622 doi: 10.1016/j.cej.2017.01.063
7. [7]
  Finocchio E, Busca G, Notaro M. Appl. Catal. B:Environ., 2006, 62:12-20 doi: 10.1016/j.apcatb.2005.06.010
8. [8]
  Wang A Q, Liu X Y, Mou C Y, et al. J. Catal., 2013, 308:258-271 doi: 10.1016/j.jcat.2013.08.023
9. [9]
  Zhang Y L, Li X K, Li K, et al. ACS Appl. Mater. Interfaces, 2017, 38:3268832697
10. [10]
  Jeong H, Kim J. Electrochim. Acta, 2018, 283:11-17 doi: 10.1016/j.electacta.2018.06.128
11. [11]
  Fedorczyk A, Pomorski R, Chmielewski M, et al. Electrochim. Acta, 2017, 246:1029-1041 doi: 10.1016/j.electacta.2017.06.138
12. [12]
  LIU Xiao-Yu, ZHANG Dong-Jie, ZHANG Hui-Juan, et al. Chinese J. Inorg. Chem., 2018, 34:712-718
13. [13]
  Xu H, Yan B, Li S M, et al. Chem. Eng. J., 2018, 334:2638-2646 doi: 10.1016/j.cej.2017.10.175
14. [14]
  Guo S J, Fang Y X, Dong S J, et al. J. Phys. Chem. C, 200, 111:17104-17109
15. [15]
  Park H Y, Park J H, Kim P, et al. Appl. Catal. B:Environ., 2017, 225:84-90
16. [16]
  LI Jia-Heng, AO Ping, LI Xiao-Qing, et al. Acta Phys.-Chim. Sin., 2015, 31:173-180 doi: 10.3866/PKU.WHXB201411131
17. [17]
  Kristian N, Wang X. Electrochem. Commun., 2008, 10:12-15 doi: 10.1016/j.elecom.2007.10.011
18. [18]
  Cao R B, Xia T T, Zhu R Z, et al. Appl. Surf. Sci., 2018, 433:840-846 doi: 10.1016/j.apsusc.2017.10.104
19. [19]
  Kang S W, Lee Y W, Park Y S, et al. ACS Nano, 2013, 7:7945-7955 doi: 10.1021/nn403027j
20. [20]
  Guo S J, Li J, Dong S J, et al. J. Phys. Chem. C, 2010, 114:15337-15342 doi: 10.1021/jp104942d
21. [21]
  Liao M Y, Li W P, Xi X P, et al. J. Electroanal. Chem., 2017, 791:124-130 doi: 10.1016/j.jelechem.2017.03.024
22. [22]
  Fedorczyk A, Pomorski R, Chmielewski M, et al. Electrochim. Acta, 2017, 246:1029-1041 doi: 10.1016/j.electacta.2017.06.138
23. [23]
  Peng R S, Sun X B, Li S J, et al. Chem. Eng. J., 2016, 306:1234-1246 doi: 10.1016/j.cej.2016.08.056
24. [24]
  Jin B F, Wei Y C, Zhao Z, et al. Chin. J. Catal., 2016, 37:923-933 doi: 10.1016/S1872-2067(15)61094-4
25. [25]
  Wei Y C, Liu J, Zhao Z, et al. J. Catal., 2012, 287:13-29 doi: 10.1016/j.jcat.2011.11.006
26. [26]
  Chang C K, Chen Y J, Yeh C T. Appl. Catal. A:Gen., 1998, 174:13-23 doi: 10.1016/S0926-860X(98)00188-4
27. [27]
  Peng R S, Sun X B, Li S J, et al. Chem. Eng. J., 2016, 306:1234-1246 doi: 10.1016/j.cej.2016.08.056
28. [28]
  Jia J F, Shen J Y, Lin L W, et al. J. Mol. Catal. A:Chem., 1999, 138:177-184 doi: 10.1016/S1381-1169(98)00147-2
29. [29]
  Kim K J, Boo S I, Ahn H G. J. Ind. Eng. Chem., 2009, 15:92-97 doi: 10.1016/j.jiec.2008.09.005
30. [30]
  Chen C Y, Zhu J, Chen F, et al. Appl. Catal. B:Environ., 2013, 140:199-205
31. [31]
  Wang R, Wang A J, Liu W D, et al. Biosens. Bioelectron., 2017, 102:276-281
32. [32]
  Feng R J, Li M, Liu J X. Colloids Surf. A, 2012, 406:6-12 doi: 10.1016/j.colsurfa.2012.04.030
33. [33]
  Yang H G, Deng J G, Xie H H. Appl. Catal. A:Gen., 2015, 507:139-148 doi: 10.1016/j.apcata.2015.09.043
