Citation: LI Xiang, ZHAO Huai-An, SU Jian, CHENG Jun-Yan, WANG Peng. Syntheses, Crystal Structures and Fluorescence Properties of Co(Ⅱ) Coordination Polymers Based on Anion Regulation Strategy[J]. Chinese Journal of Inorganic Chemistry, ;2019, 35(1): 109-115. doi: 10.11862/CJIC.2019.020 shu

Syntheses, Crystal Structures and Fluorescence Properties of Co(Ⅱ) Coordination Polymers Based on Anion Regulation Strategy

LI Xiang ¹ ,
ZHAO Huai-An ¹ ,
SU Jian ² ,
CHENG Jun-Yan ³ ,
WANG Peng ^1,,

1.
College of Chemical and Environmental Engineering, Shandong University of Science and Technology, Qingdao, Shandong 266590, China
2.
State Key Laboratory of Coordination Chemistry, School of Chemistry and Chemical Engineering, Collaborative Innovation Center of Advanced Microstructures, Nanjing University, Nanjing 210093, China
3.
College of Chemistry, Chemical Engineering and Materials Science, Shandong Normal University, Jinan 250014, China

Corresponding author: WANG Peng, pengwang@sdust.edu.cn
Received Date: 3 October 2018
Revised Date: 20 November 2018

Figures(8)

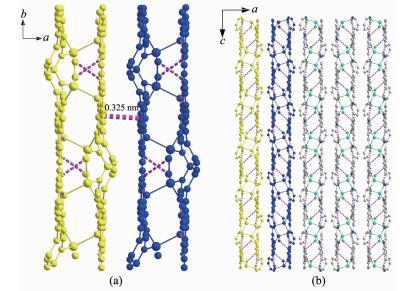

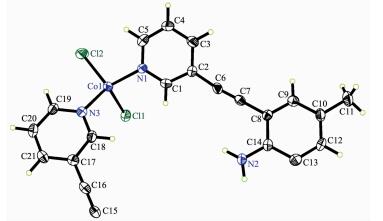

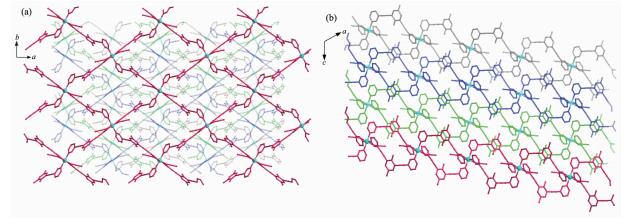

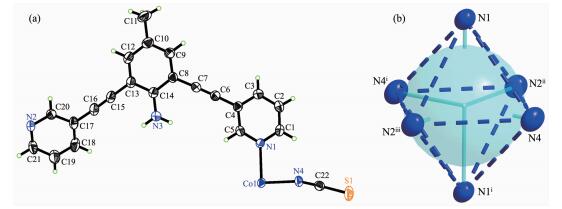

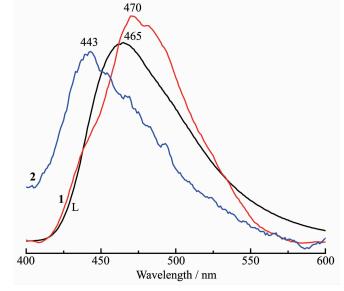

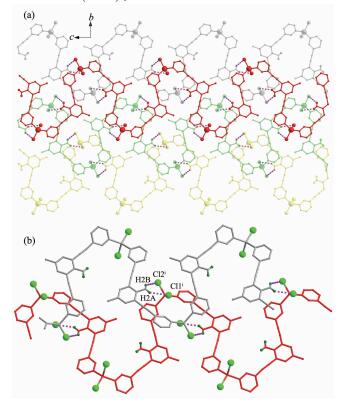

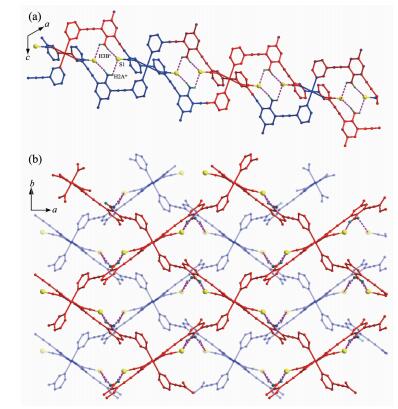

Two coordination polymers [Co(L) Cl₂]_n (1) and [Co(L)₂(SCN)₂]_n (2) were obtained by using 4-methyl-2, 6-bis(pyridin-3-ylethynyl) aniline (L) and Co(Ⅱ) salts in CH₂Cl₂/MeOH mixed solvent under room temperature. The complexes 1 and 2 were characterized by IR, elemental analysis and X-ray single crystal diffraction. The structural analysis revealed that complex 1 has 1D chain structure and 2 has 2D plane structure. The reason of the structure difference was anion choice because the L in both of the coordination complexes adopts almost same trans-N, N donor configuration. Complex 1 has four-coordinated Co(Ⅱ)) which coordinated to two L molecules, while complex 2 has six-coordinated Co(Ⅱ) which coordinated to four L molecules. The XRD and fluorescence property of two complexes were investigated. Compared to the emission spectrum of L, the emission maximum of the complex 1 was red shift and 2 was blue shift.
- pyridine ligand,
- anion regulation,
- Co (Ⅱ) coordinate complexes,
- crystal structure
1. [1]
  Zhao D, Timmons D J, Yuan D Q, et al. Acc. Chem. Res., 2011, 44(2):123-133 doi: 10.1021/ar100112y
2. [2]
  Zhang Y M, Yang X Y, Zhou H C. Polyhedron, 2018, 6:189-201
3. [3]
  Yan Z H, Li D H, Yin X B. Sci. Bull., 2017, 62(19):1344-1354 doi: 10.1016/j.scib.2017.09.013
4. [4]
  Ebrahimipour S Y, Sheikhshoaie I, Mohamadi M, et al. Spectrochim. Acta Part A, 2015, 142:410-22 doi: 10.1016/j.saa.2015.01.088
5. [5]
  Ermolaev A V, Smolentsev A I, Brylev K A, et al. J. Mol. Struct., 2018, 1173:627-634 doi: 10.1016/j.molstruc.2018.07.028
6. [6]
  Günay H, Colak A T, Yesilel O Z, et al. J. Mol. Struct., 2015, 1099:108-113 doi: 10.1016/j.molstruc.2015.06.029
7. [7]
  Li Y G, Lu X J, Jing H R, et al. Inorg. Chim. Acta, 2017, 467:117-122 doi: 10.1016/j.ica.2017.07.070
8. [8]
  Mudsainiyan R K, Jassal A K, Chawla S K. J. Solid State Chem., 2015, 230:61-69 doi: 10.1016/j.jssc.2015.04.001
9. [9]
  Sun A H, Pan J, Han S D, et al. Inorg. Chem., 2017, 56(22):13785-13793 doi: 10.1021/acs.inorgchem.7b01807
10. [10]
  Getachew N, Chebude Y, Diaz I, et al. J. Porous Mater., 2014, 21(5):769-773 doi: 10.1007/s10934-014-9823-6
11. [11]
  Trivedi M, Ujjain S K, Sharma R K, et al. New J. Chem., 2014, 38(9):4267-4274 doi: 10.1039/C4NJ00829D
12. [12]
  Wang Y F, Wang L P, Zhou X L, et al. J. Mol. Struct., 2018, 1173:612-619 doi: 10.1016/j.molstruc.2018.07.025
13. [13]
  Yang X K, Chang M N, Hsing J F, et al. J. Mol. Struct., 2018, 1171:340-348 doi: 10.1016/j.molstruc.2018.06.036
14. [14]
  Zhang J W, Zhang R J, Ren Y N, et al. J. Mol. Struct., 2018, 1173:552-556 doi: 10.1016/j.molstruc.2018.07.004
15. [15]
  Hu J S, Wu K, Dong S J, et al. Polyhedron, 2018, 153:261-267 doi: 10.1016/j.poly.2018.07.024
16. [16]
  Laurier K G, Vermoortele F, Ameloot R, et al. J. Am. Chem. Soc., 2013, 135(39):14488-14491 doi: 10.1021/ja405086e
17. [17]
  Li D Y, Xie H, Yao X Q, et al. J. Mol. Struct., 2017, 1134:171-173
18. [18]
  LI Xin-Wei, WANG Peng, ZHAO Ying, et al. Chinese J. Inorg. Chem., 2014, 30(6):1361-1366
19. [19]
  Ren X H, Wang P, Cheng J Y, et al. J. Mol. Struct., 2018, 1161:145-151 doi: 10.1016/j.molstruc.2018.02.039
20. [20]
  Wang P, Zhang Y J, Qin J, et al. J. Mol. Struct., 2015, 1083:95-100 doi: 10.1016/j.molstruc.2014.11.048
21. [21]
  YU Qin, WANG Da-Peng, MA Jian-Ping, et al. Chinese J. Inorg. Chem., 2017, 33(12):2345-2350 doi: 10.11862/CJIC.2017.261
22. [22]
  KANG Min-Yan. Thesis for the Master of Inner Mongolia University. 2012.
23. [23]
  DU Miao, BU Xian-He. Chinese J. Inorg. Chem., 2003, 19(1):1-6 doi: 10.3321/j.issn:1001-4861.2003.01.001
24. [24]
  JIA Wei-Guo. Journal of Anhui Normal University, 2004, 27(4):430-436 doi: 10.3969/j.issn.1001-2443.2004.04.016
25. [25]
  WANG Peng, ZHAO Jing-Jing, WANG Zhong -Wei, et al. Chinese J. Org. Chem., 2011, 31(5):757-761
26. [26]
  Sheldrick G M. SHELXL-2014, Program for Crystal Structure Solution, University of Göttingen, Germany, 2014.
