Citation: FENG Yong-Lan, ZHANG Fu-Xing, YU Jiang-Xi, JIANG Wu-Jiu, KUANG Dai-Zhi. Syntheses, Structures, Spectroscopic Properties and Herbicidal Activity of 1-(2-Hydroxybenzylidene)-5-(4-hydroxy-3-methoxybenzylidene) Carbohydrazide Butyltin Complexes[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(10): 1857-1863. doi: 10.11862/CJIC.2018.216 shu

Syntheses, Structures, Spectroscopic Properties and Herbicidal Activity of 1-(2-Hydroxybenzylidene)-5-(4-hydroxy-3-methoxybenzylidene) Carbohydrazide Butyltin Complexes

Key Laboratory of Functional Metal-Organic Compounds of Hunan Province, Key Laboratory of Functional Organometallic Materials of College of Hunan Province, Department of Chemistry and Material Science, Hengyang Normal University, Hengyang, Hunan 421008, China

Corresponding author: KUANG Dai-Zhi, hnkcq@qq.com
Received Date: 29 May 2018
Revised Date: 27 June 2018

Figures(5)

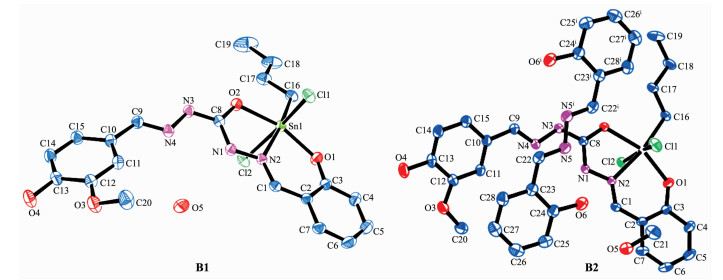

The 1, 5-asymmetric disubstituted carbohydrazide ligands were prepared by condensation of carbohy-drazide with salicylaldehyde and then with vanillin. The butyltin complex B1 based on the 1, 5-disubstituted carbohydrazide and the complex B2 containing salicylaldehyde azine were obtained by solvothermal reaction of n-BuSnCl₃ with the ligand in methanol environments, which have been structurally characterized by elemental analysis, IR and ¹H, ¹³C, ¹¹⁹Sn NMR spectra. The crystal of complex B1 belongs to monoclinic system, space group P2₁/n, and the crystal of complex B2 belongs to triclinic system, space group P1. The Sn atom is six-coordinated with distorted octahedral geometry by O, N atoms from ligand, C atom of butyl and two Cl atoms. The complex B1 had good fluorescence properties in the DMF-H₂O solvents, and the water content in the 0~10%(V/V) range had aggregation induced emission enhancement(AIE). When the water content was more than 10%, the fluorescence intensity decreased with the increase of water volume fraction, and finally was quenched. The ligand and its butyltin complex B1 have the effect of growth on the target plants, such as Portulaca oleracea L., Amaranthus spinosus L., Cassia tora L., Brassica campestris L. ssp. chinensis var. utilis Tsen et Lee and Amaranthus tricolor L. The ligand has a good inhibitory effect on the growth of Portulaca oleracea L. and Amaranthus spinosus L., and the complex has selective inhibition on the growth of Cassia tora L., which can be used as a candidate compound for Cassia tora L. herbicide.
- asymmetrical 1, 5-disubstituted carbohydrazide,
- butyltin complex,
- crystal structure,
- fluorescence property,
- herbicidal activity
1. [1]
  Muhammed B I, Irvin N B, Matthew P A, et al. J. Organomet. Chem., 2017, 833(1):18-27
2. [2]
  Andrew C B, Pickering E C, Wilson F J. J. Chem. Soc., 1928:1257-1261
3. [3]
  Rubčić M, Galić N, Halasz I, et al. Cryst. Growth. Des., 2014, 14(6):2900-2912 doi: 10.1021/cg500203k
4. [4]
  Sutradhar M, Barman T R, Rentschle E. Inorg. Chem. Commun., 2014, 39:140-143 doi: 10.1016/j.inoche.2013.11.018
5. [5]
  ZHU Ji-Hua, ZHENG Xu-Dong, GUO Guo-Zhe, et al. Chin. J. Org. Chem., 2015, 35(6):1975-1980
6. [6]
  YANG Chun-Lin, FENG Yong-Lan, ZHANG Fu-Xing, et al. Chinese J. Inorg. Chem., 2017, 33(8):1397-1402
7. [7]
  Tan S F, Ang K P, Jayachandran H. Transition Met. Chem., 1988, 13:64-68 doi: 10.1007/BF01041502
8. [8]
  Sheldrick G M. SHELXTL, Version 5.03, Madison, Wisconsin, USA, 1994.
9. [9]
  FANG Xiao-Niu, DAI Mei-Zhen, LI Xiao-Hong, et al. Chemical Research and Application, 2009, 21(5):680-684 doi: 10.3969/j.issn.1004-1656.2009.05.016
10. [10]
  LIU Sheng-Li, CHEN Yong, DAI Jing-Fang, et al. Chinese Journal of Synthetic Chemistry, 2004, 12:219-221 doi: 10.3969/j.issn.1005-1511.2004.03.005
11. [11]
  Chandrasekhar V, Thirumoorthi R, Metre R K, et al. J. Organomet. Chem., 2011, 696:600-606 doi: 10.1016/j.jorganchem.2010.09.032
12. [12]
  Ruan B, Tian Y, Zhou H, et al. Inorg. Chim. Acta, 2011, 365:302-308 doi: 10.1016/j.ica.2010.09.024
13. [13]
  Xiao X, Du D, Tian M, et al. J. Organomet. Chem., 2012, 715:54-63 doi: 10.1016/j.jorganchem.2012.05.038
14. [14]
  Yoder C H, Margolis L A, Horne J M. J. Organomet. Chem., 2001, 633:33-38 doi: 10.1016/S0022-328X(01)01073-7
15. [15]
  Tang W X, Xiang Y, Tong A J. J. Org. Chem., 2009, 74:2163-2166 doi: 10.1021/jo802631m
