Citation: WU Da-Ling, ZHANG Min-Zhi, WU Xiao-Yong, ZHAO Guo-Liang. Syntheses, Crystal Structures and DNA-Binding of Two Zinc(Ⅱ) Complexes Constructed by 4-Methyl-1, 2, 3-thiadiazol-5-carboxylic Acid[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(5): 973-980. doi: 10.11862/CJIC.2018.107 shu

Syntheses, Crystal Structures and DNA-Binding of Two Zinc(Ⅱ) Complexes Constructed by 4-Methyl-1, 2, 3-thiadiazol-5-carboxylic Acid

1.
College of Chemistry and Life Science, Zhejiang Normal University, Jinhua, Zhejiang 321004, China
2.
Xingzhi College, Zhejiang Normal University, Jinhua, Zhejiang 321004, China

Corresponding author: ZHAO Guo-Liang, sky53@zjnu.cn
Received Date: 20 November 2017
Revised Date: 11 January 2018

Figures(9)

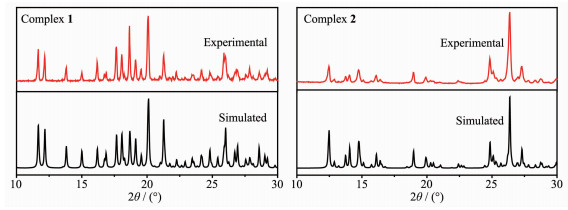

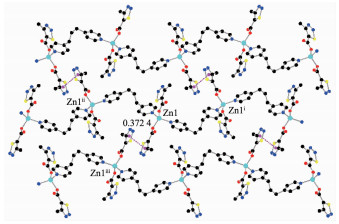

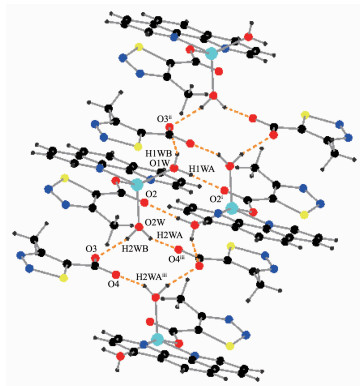

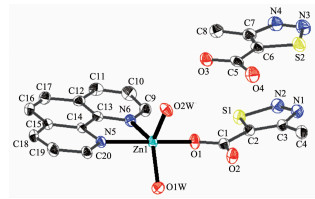

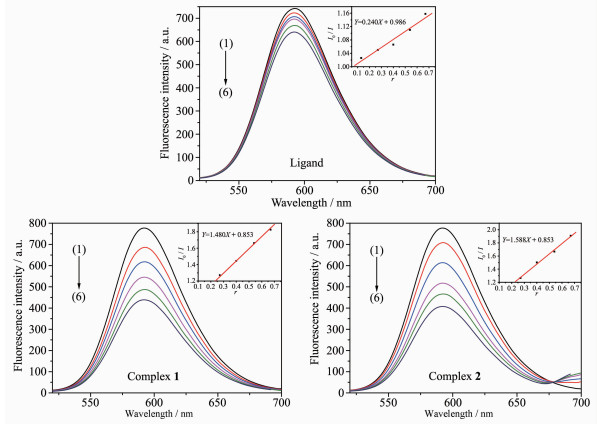

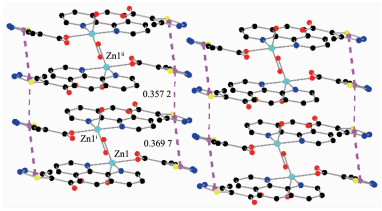

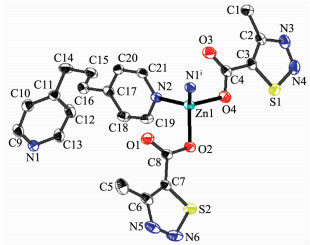

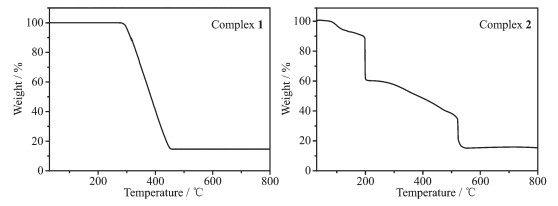

Two new zinc complexes[Zn(MTC)₂(bpp)]_n (1) and[Zn(MTC)(phen)(H₂O)₂](MTC) (2) (HMTC=4-methyl-1, 2, 3-thiadiazol-5-carboxylic, C₄H₄N₂O₂S; bpp=1, 3-bis(4-pyridyl) propane; phen=1-10-phenanthroline) have been synthesized and characterized by single crystal X-ray diffraction, elemental analysis, IR spectra, PXRD and TG. The single crystal X-ray diffraction reveals that the complex 1 is two-dimensional network structure and crystallized in monoclinic with space group P2₁/c. Central Zn²⁺ is four-coordinated forming a distorted tetrahedron coordina-tion geometry. The complex 2 is two-dimensional layered structure and crystallized in triclinic with space group P1. Central Zn²⁺ is five-coordinated forming a distorted trigonal bipyramid coordination geometry. In addition, the interaction of complexes and ligand with EB-DNA were also studied by EtBr fluorescence probe. The interaction of complexes with DNA is stronger than ligand.
- 4-methyl-1, 2, 3-thiadiazol-5-carboxylic acid,
- zinc complex,
- crystal structure,
- DNA-binding
1. [1]
  Wang H L, Zhang D P, Sun D F, et al. CrystEngComm, 2010, 12:1096-1102 doi: 10.1039/B917659D
2. [2]
  Feng X, Ma L F, Liu L, et al. Cryst. Growth Des., 2013, 13(10):4469-4479 doi: 10.1021/cg4009587
3. [3]
  Sakamoto R, Iwashima T, Kogel J F, et al. J. Am. Chem. Soc., 2016, 138(17):5666-5677 doi: 10.1021/jacs.6b02128
4. [4]
  Medishetty R, Nalla V, Nemec L, et al. Adv. Mater., 2017, 29(17):1605637 doi: 10.1002/adma.v29.17
5. [5]
  Zhao J, Wang X L, Shi X, et al. Inorg. Chem., 2011, 50(8):3198-3205 doi: 10.1021/ic101112b
6. [6]
  Shi Z Z, Pan Z R, Jia H L, et al. Cryst. Growth Des., 2016, 16(5):2747-2755 doi: 10.1021/acs.cgd.6b00056
7. [7]
  Hwang I H, Jo Y D, Kim H Y, et al. Polyhedron, 2012, 42(1):282-290 doi: 10.1016/j.poly.2012.05.040
8. [8]
  Li Q Y, Chen D Y, He M H, et al. J. Solid State Chem., 2012, 190:196-201 doi: 10.1016/j.jssc.2012.02.007
9. [9]
  Okamoto K, Matsumoto K, Hille R, et al. Biochemsitry, 2004, 101(21):7931-7936
10. [10]
  Pinto L D, Puppin P A L, Behring V M, et al. Inorg Chim. Acta, 2010, 363(10):2624-2630
11. [11]
  Beckmann J, Dakternieks D, Duthie A, et al. J. Organomet. Chem., 2003, 688(1/2):56-61
12. [12]
  Chen B L, Ockwig N W, Contreras D S, et al. Angew. Chem. Int. Ed., 2005, 117(30):4823-4827 doi: 10.1002/(ISSN)1521-3757
13. [13]
  Kumar K V, Preuss K, Titirici M M, et al. Chem. Rev., 2017, 117(3)1796-1825 doi: 10.1021/acs.chemrev.6b00505
14. [14]
  Lin J Y S. Science, 2016, 353(6295):121-122 doi: 10.1126/science.aag2267
15. [15]
  Rodenas T, Luz I, Prieto G, et al. Nat. Mater., 2015, 14:48-55 doi: 10.1038/nmat4113
16. [16]
  Semerci F, Yesilel O Z, Soylu M S, et al. Polyhedron, 2013, 50(1):314-320 doi: 10.1016/j.poly.2012.10.009
17. [17]
  Ma Z B, Moulton B. Coord. Chem. Rev., 2011, 255(15/16):1623-1641
18. [18]
  Efthimiadou E K, Karaliota A, Psomas G. J. Inorg. Biochem., 2010, 104(4):455-466 doi: 10.1016/j.jinorgbio.2009.12.019
19. [19]
  Rosi N L, Kim J, Eddaoudi M, et al. J. Am. Chem. Soc., 2005, 127(5):1504-1518 doi: 10.1021/ja045123o
20. [20]
  HU De-Yu, SONG Bao-An, HE Wei, et al. Chinese Journal of Synthetic Chemistry, 2006, 14(4):319-328
21. [21]
  Cui Y J, Qian G, Chen L, et al. Dyes Pigm., 2008, 77(1):217-222 doi: 10.1016/j.dyepig.2007.05.005
22. [22]
  Yamamoto T, Otsuka S I, Fukumoto H, et al. J. Polym. Sci. Part A:Polym. Chem., 2011, 49(6):1508-1512 doi: 10.1002/pola.24557
23. [23]
  Osaka I, Zhang R, Liu J Y, et al. Chem. Mater., 2010, 22(14):4191-4196 doi: 10.1021/cm101052b
24. [24]
  Lyu F J, Zhang Y F, Zare R N, et al. Nano Lett., 2014, 14(10):5761-5765 doi: 10.1021/nl5026419
25. [25]
  Yang J, Chen X J, Li Y S, et al. Chem. Mater., 2017, 29(10):4580-4589 doi: 10.1021/acs.chemmater.7b01329
26. [26]
  CHEN Qing, LU Li-Ping. Chinese J. Inorg. Chem., 2016, 32(6):1001-1008 doi: 10.11862/CJIC.2016.123
27. [27]
  ZHU Xing-Cheng, HUANG Chao, ZHANG Qi-Long, et al. Chinese J. Inorg. Chem., 2016, 32(6)1041-1046 doi: 10.11862/CJIC.2016.128
28. [28]
  Sheldrick G M. SADABS: Program for Empirical Absorption Correction of Area Detector Data, University of Göttingen, Germany, 1996.
29. [29]
  Sheldrick G M. SHELXS-97, Program for the Solution of Crystal Structure, University of Göttingen, Germany, 1997.
30. [30]
  Sheldrick G M. SHELXL-97, Program for the Refinement of Crystal Structure, University of Göttingen, Germany, 1997.
31. [31]
  Li X M, Dong Y H, Wang Q W, et al. Acta Crystallogr. Sect. E:Struct. Rep. Online, 2007, 63:1274-1276
32. [32]
  Lin X F. Acta Crystallogr. Sect. E:Struct. Rep. Online, 2006, 62:2039-2040 doi: 10.1107/S1600536806029928
33. [33]
  GUO Hang-Min, ZHAO Guo-Liang, WU Xiao-Yong, et al. Chinese J. Inorg. Chem., 2011, 27(5):855-859
34. [34]
  Lakowicz J R, Webber G. Biochemistry, 1973, 12(21):4161-4170 doi: 10.1021/bi00745a020
