Citation: ZHANG Jia-Qi, WU Xiao-Feng, MA Xin-Yu, YUAN Long, HUANG Ke-Ke, FENG Shou-Hua. Amporphous La_0.75Sr_0.25MnO₃ Thin Film Fabricated by Pulsed Laser Deposition as a Medium Layer for Semi-transparent Resistive Random Access Memory[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(4): 784-790. doi: 10.11862/CJIC.2018.099 shu

Amporphous La_0.75Sr_0.25MnO₃ Thin Film Fabricated by Pulsed Laser Deposition as a Medium Layer for Semi-transparent Resistive Random Access Memory

State Key Laboratory of Inorganic Synthesis and Preparative Chemistry, College of Chemistry, Jilin University, Changchun 130012, China

Corresponding author: FENG Shou-Hua, shfeng@jlu.edu.cn
Received Date: 21 November 2017
Revised Date: 28 December 2017

Figures(6)

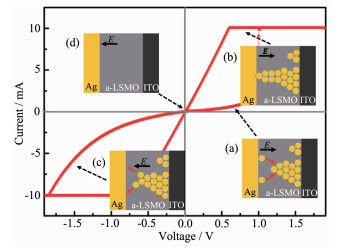

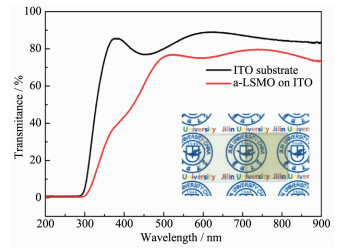

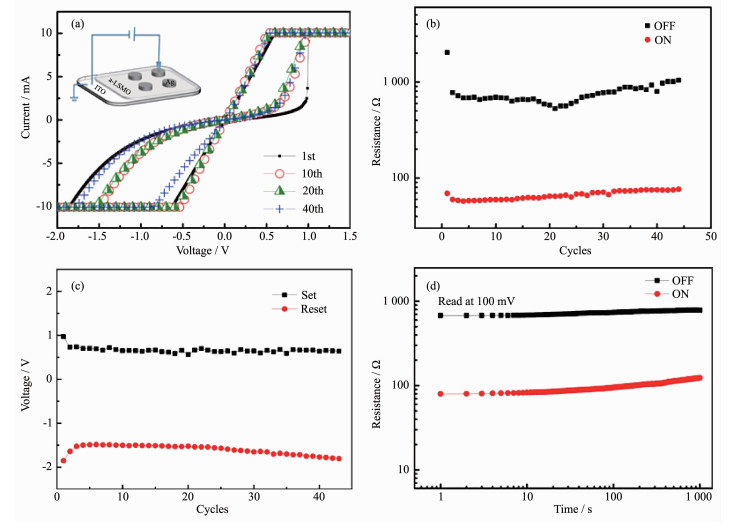

Amorphous La_0.75Sr_0.25MnO₃(a-LSMO) was deposited by pulsed laser deposition (PLD) as an interlayer of a resistive-switching device (Ag/a-LSMO/ITO) with good non-volatile and bipolar resistance switching behaviour.Bottom ITO substrate and ultra-thin a-LSMO layer allow semi-transparent device fabrication.The formation of Ag filament connected from Ag electrode to ITO electrode is directly observed in the cross-sectional image by the high-resolution transmission electron microscope (HRTEM).The resistive switching in the device is attributed to the growth and dissolution of Ag filament in the amorphous LSMO layer.
- resistive random access memory,
- manganite,
- pulsed laser deposition,
- perovskite
1. [1]
  Jo S H, Chang T, Ebong I, et al. Nano Lett., 2010, 10:1297-1301 doi: 10.1021/nl904092h
2. [2]
  Wang Z Q, Xu H Y, Li X H, et al. Adv. Funct. Mater., 2012, 22:2759-2765 doi: 10.1002/adfm.v22.13
3. [3]
  Kim H, Sah M P, Yang C, et al. Proc. IEEE, 2012, 100:2061-2070 doi: 10.1109/JPROC.2011.2166749
4. [4]
  Waser R, Dittmann R, Staikov C, et al. Adv. Mater., 2009, 21:2632-2663 doi: 10.1002/adma.200900375
5. [5]
  Yang J J, Strukov D B, Stewart D R. Nat. Nanotechnol., 2012, 8:13-24
6. [6]
  Waser R, Aono M. Nat. Mater., 2007, 6:833-840 doi: 10.1038/nmat2023
7. [7]
  Jo S H, Kim K H, Lu W. Nano Lett., 2009, 9:870-874 doi: 10.1021/nl8037689
8. [8]
  Chai Y, Wu Y, Takei K, et al. IEEE Trans. Electron Devices, 2011, 58:3933-3939 doi: 10.1109/TED.2011.2164615
9. [9]
  Choi B J, Torrezan A C, Norris K J, et al. Nano Lett., 2013, 13:3213-3217 doi: 10.1021/nl401283q
10. [10]
  Kim H D, An H M, Lee E B, et al. IEEE Trans. Electron Devices, 2011, 58:3566-3573 doi: 10.1109/TED.2011.2162518
11. [11]
  Chu C W, Ouyang J, Tseng J H, et al. Adv. Mater., 2005, 17:1440-1443 doi: 10.1002/(ISSN)1521-4095
12. [12]
  Kang N G, Cho B, Kang B G, et al. Adv. Mater., 2012, 24:385-390 doi: 10.1002/adma.201103862
13. [13]
  Liu D, Wang N, Wang G, et al. Appl. Phys. Lett., 2013, 102:134105 doi: 10.1063/1.4800229
14. [14]
  Liu D, Cheng H, Zhu X, et al. ACS Appl. Mater. Interfaces, 2013, 5:11258-11264 doi: 10.1021/am403497y
15. [15]
  Tokura Y, Tomioka Y. J. Magn. Magn. Mater., 1999, 200:1-23 doi: 10.1016/S0304-8853(99)00352-2
16. [16]
  Liu S Q, Wu N J, Ignatiev A. Appl. Phys. Lett., 2000, 76:2749-2751 doi: 10.1063/1.126464
17. [17]
  Moritomo Y, Kuwahara H, Tomioka Y, et al. Phys. Rev. B, 1997, 55:7549-7556 doi: 10.1103/PhysRevB.55.7549
18. [18]
  Renner C, Aeppli G, Kim B G, et al. Nature, 2002, 416:518-521 doi: 10.1038/416518a
19. [19]
  Liu D Q, Cheng H F, Wang G, et al. IEEE Electron Device Lett., 2013, 34:1506-1508 doi: 10.1109/LED.2013.2284927
20. [20]
  O'Sullivan M, Hadermann J, Dyer M S, et al. Nat. Chem., 2016, 8:347-353 doi: 10.1038/nchem.2441
21. [21]
  Zhang J Q, Huang K K, Si W Z, et al. Sci. China, Ser. B Chem., 2013, 56:583-587 doi: 10.1007/s11426-012-4813-5
22. [22]
  Sun Y, Wu X, Yuan L, et al. Chem. Commun., 2017, 53:2499-2502 doi: 10.1039/C7CC00140A
23. [23]
  Sun H, Liu Q, Li C, et al. Adv. Funct. Mater., 2014, 24:5679-5686 doi: 10.1002/adfm.v24.36
24. [24]
  Qiu J, Lu H B, Jin K J, et al. Phys. B:Condens. Matter, 2007, 400:66-69 doi: 10.1016/j.physb.2007.06.023
25. [25]
  Turky A O, Rashad M M, Hassan A M, et al. RSC Adv., 2016, 6:17980-17986 doi: 10.1039/C5RA27461C
26. [26]
  Zhang J J, Sun H J, Li Y, et al. Appl. Phys. Lett., 2013, 102:183513 doi: 10.1063/1.4804983
27. [27]
  Pailloux F, Lyonnet R, Maurice J L, et al. Appl. Surf. Sci., 2001, 177:263-267 doi: 10.1016/S0169-4332(01)00218-5
28. [28]
  Walter T, Dorr K, Muller K H, et al. Appl. Phys. Lett., 1999, 74:2218-2220 doi: 10.1063/1.123806
