Citation: LI Yue-Jun, CAO Tie-Ping, MEI Zhe-Min, XI Xiao-Tian, WANG Xia, SUN Da-Wei. Preparation and Visible-Light Photocatalytic Properties of Ce-doped Bi₂MoO₆/TiO₂ Nanofibers Heterojunction[J]. Chinese Journal of Inorganic Chemistry, ;2018, 34(4): 689-696. doi: 10.11862/CJIC.2018.082 shu

Preparation and Visible-Light Photocatalytic Properties of Ce-doped Bi₂MoO₆/TiO₂ Nanofibers Heterojunction

Research Centre of Nano-Photocatalyst, Baicheng Normal University, Baicheng, Jilin 137000, China

Corresponding author: MEI Zhe-Min, bczeminmei@163.com
Received Date: 4 November 2017
Revised Date: 7 January 2018

Figures(8)

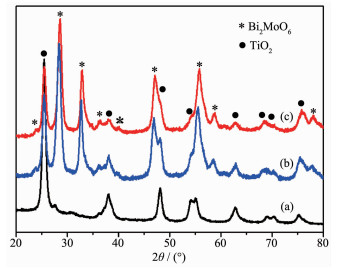

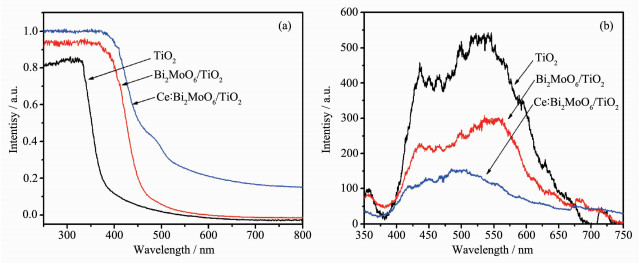

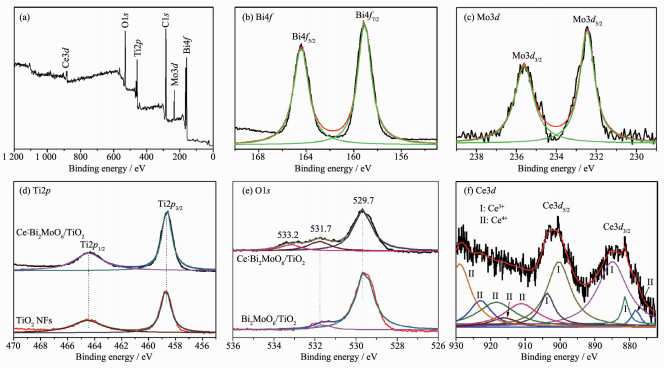

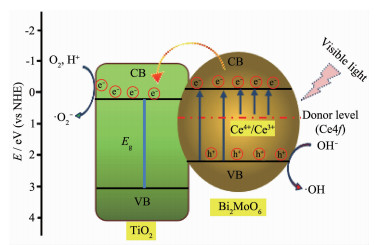

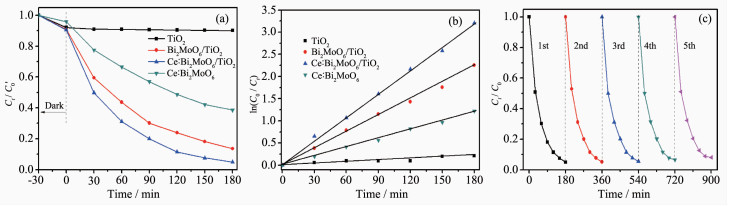

By employing electrospun TiO₂ nanofiber as substrate, rare earth Ce doped Bi₂MoO₆/TiO₂ composite nanofibers were prepared via solvothermal method. The composition, morphology and optical properties were characterized by XRD, SEM, XPS, TEM, UV-Vis DRS and PL analysis. The photocatalytic properties were tested by degradation of rhodamine B under visible light. The results show that Ce³⁺ ion can be a substitute for Bi³⁺ in the crystal lattice of Bi₂MoO₆, resulting in an expansion, distortion of lattice cell and hence defects. Photocatalytic test shows that the activity of TiO₂ nanofibers under visible light can be enhanced. For example, the degradation percentage of RhB can be as high as 95.1%, which is believed to benefit from the effective charge generation, transfer and separation at the interface of Ce-doped Bi₂MoO₆/TiO₂ heterojunction. Moreover, the Ce-doped Bi₂MoO₆/TiO₂ composite nanofibers are of good stability, whose activity is hardly decreased after cycling 5 times.
- rare earth Ce doping,
- Bi₂MoO₆/TiO₂ composite nanofibers,
- heterojunction,
- visible light photocatalysis,
- electrospinning technology
1. [1]
  Fujishima A, Honda K. Nature, 1972, 238(5358):37-38 doi: 10.1038/238037a0
2. [2]
  Somorjai G A, Frei H, Park J Y. J. Am. Chem. Soc., 2009, 131(46):16589-16605 doi: 10.1021/ja9061954
3. [3]
  Cao T P, Li Y J, Wang C H, et al. Langmuir, 2011, 27(6):2946-2952 doi: 10.1021/la104195v
4. [4]
  Wang K X, Shao C L, Li X H, et al. Catal. Commun., 2015, 67:6-10 doi: 10.1016/j.catcom.2015.03.037
5. [5]
  YAN Xin, HUI Xiao-Yan, GAO Qiang, et al. Chinese J. Inorg. Chem., 2017, 33(10):1782-1788
6. [6]
  Cao T P, Li Y J, Wang C H, et al. Mater. Res. Bull., 2010, 45(10):1406-1412 doi: 10.1016/j.materresbull.2010.06.043
7. [7]
  Asahi R, Morikawa T, Ohwaki T, et al. Science, 2001, 293(5528):269-271 doi: 10.1126/science.1061051
8. [8]
  Sathish M, Viswanathan B, Viswanath R P, et al. Chem. Mater., 2005, 17(25):6349-6353 doi: 10.1021/cm052047v
9. [9]
  Cai Z Y, Xiong Z G, Lu X M, et al. J. Mater. Chem. A, 2014, 2(2):545-553 doi: 10.1039/C3TA13878J
10. [10]
  Gao X F, Li H B, Sun W T, et al. J. Phys. Chem. C, 2009, 113(18):7531-7535 doi: 10.1021/jp810727n
11. [11]
  ZHEN Yan-Zhong, WANG Jie, FU Meng-Xi, et al. Chinese J. Inorg. Chem., 2017, 33(10):1731-1740
12. [12]
  Yang L X, Luo S L, Liu R H, et al. J. Phys. Chem. C, 2010, 114(11):4783-4789 doi: 10.1021/jp910489h
13. [13]
  Zhang M Y, Shao C L, Mu J B, et al. CrystEngComm, 2012, 14(2):605-612 doi: 10.1039/C1CE05974B
14. [14]
  Li H, Zhang T X, Pan C, et al. Appl. Surf. Sci., 2017, 391(B):303-310
15. [15]
  Yang X L, Xiang Y G, Qu Y, et al. J. Catal., 2017, 345:319-328 doi: 10.1016/j.jcat.2016.11.014
16. [16]
  Dai Z, Qin F, Zhao H P, et al. ACS Catal., 2016, 6(5):3180-3192 doi: 10.1021/acscatal.6b00490
17. [17]
  Guo R Q, Fang L, Dong W, et al. J. Phys. Chem. C, 2010, 114(49):21390-21396 doi: 10.1021/jp104660a
18. [18]
  Dai G P, Yu J G, Liu G. J. Phys. Chem. C, 2011, 115(15):7339-7346 doi: 10.1021/jp200788n
19. [19]
  Lv W Z, Huang D Z, Chen Y M, et al. Ceram. Int., 2014, 40(8):12661-12668 doi: 10.1016/j.ceramint.2014.04.113
20. [20]
  Ren W, Ai Z, Jia F, et al. Appl. Catal., B, 2007, 69(3/4):138-144
21. [21]
  Bosman H J M, Pijpers A P, Jaspers A W M A. J. Catal., 1996, 161(2):551-559 doi: 10.1006/jcat.1996.0217
22. [22]
  Merupo V I, Velumani S, Ordon K, et al. CrystEngComm, 2015, 17(17):3366-3375 doi: 10.1039/C5CE00173K
23. [23]
  Borchert H, Frolova Y V, Kaichev V V, et al. J. Phys. Chem. B, 2005, 109(12):5728-5738 doi: 10.1021/jp045828c
24. [24]
  Korsvik C, Patil S, Seal S, et al. Chem. Commun., 2007, 14(10):1056-1058
25. [25]
  Bêche E, Charvin P, Perarnau D, et al. Surf. Interface Anal., 2008, 40(3/4):264-267
26. [26]
  MIAO Ying-Cun, PAN Gai-Fang, HUO Yu-Ning, et al. Chinese J. Inorg. Chem., 2014, 30(7):1587-1592
27. [27]
  Yu J G, Fan J J, Zhao L. Electrochim. Acta, 2010, 55(1):597-602
28. [28]
  Zhang Y H, Tang Z R, Fu X, et al. ACS Nano, 2011, 5(9):7426-7435 doi: 10.1021/nn202519j
29. [29]
  Kishi H, Kohzu N, Sugino J, et al. J. Eur. Ceram. Soc., 1999, 19(6/7):1043-1046
