Citation: MA Hong-Bin, MA Ling-Juan, HOU Meng-Ning, YUE Ming-Bo. Rod-like CuFe₄O_x Composite:Controllable Synthesis and Catalytic Performance in Isoamylic Alcohol Dehydrogenation[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(12): 2193-2200. doi: 10.11862/CJIC.2017.275 shu

Rod-like CuFe₄O_x Composite:Controllable Synthesis and Catalytic Performance in Isoamylic Alcohol Dehydrogenation

School of Chemistry and Chemical Engineering, Qufu Normal University, Qufu, Shandong 273165, China

Corresponding author: MA Ling-Juan, malingjuan@qfnu.edu.cn
Received Date: 12 July 2017
Revised Date: 22 September 2017

Figures(8)

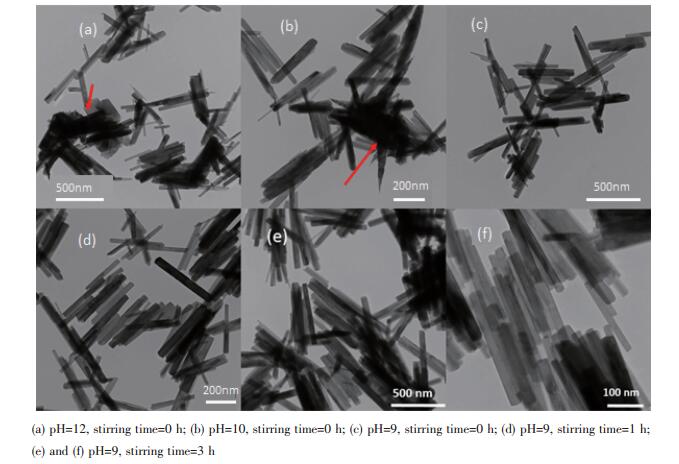

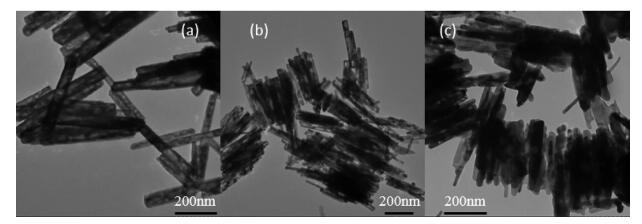

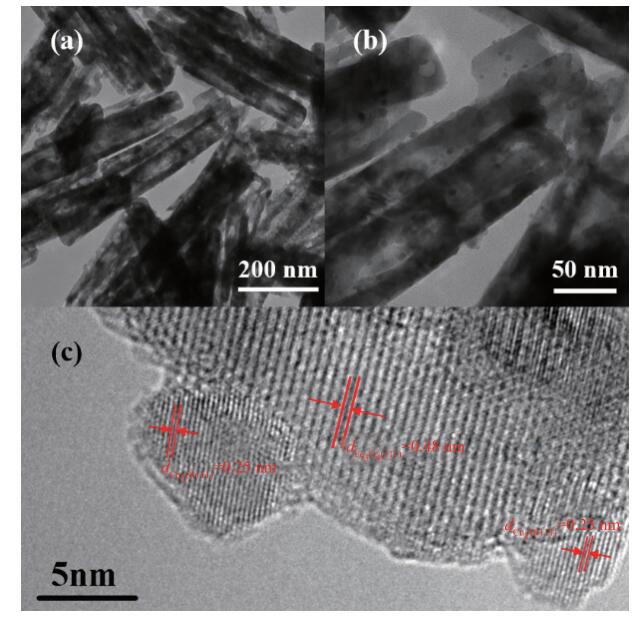

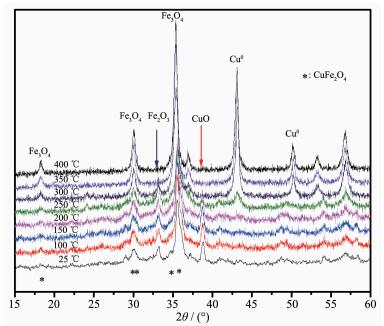

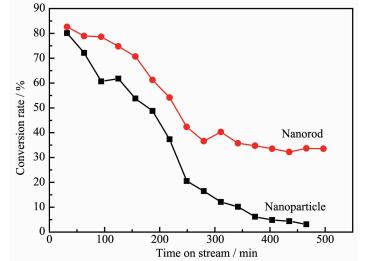

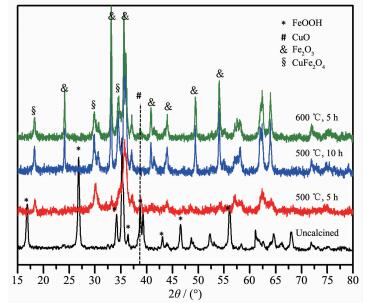

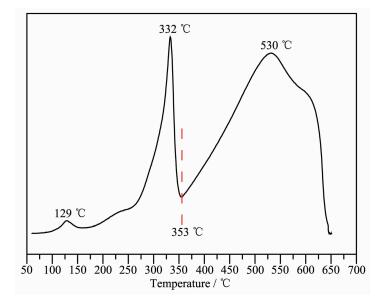

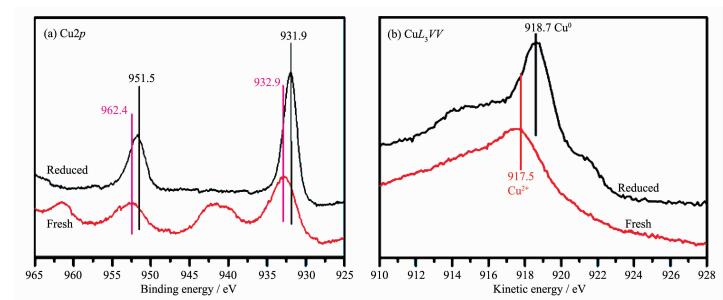

Uniformly rod-shaped CuFe₄O_x catalysts were controllably fabricated through a liquid-phase precipitation method. The phase structure, morphology and reduction properties of the catalyst were characterized by in-situ powder X-ray diffraction (XRD), high resolution transmission electron microscope (HRTEM) and temperature-programmed reduction (TPR). Cu⁰/Fe₃O₄-nanorod obtained from the reduction of rod-shaped CuFe₄O_x structure and the surface phase composition of Cu⁰/Fe₃O₄ was detailed studied by in-situ X-ray photoelectron spectroscopy (XPS). CuFe₄O_x composites with rod-shape were prepared by an aqueous precipitation method that means after stirring time at 120℃ for 3 h, Na₂CO₃ solution was added until pH value equal to 9. In this case, the most uniform CuFe₄O_x composites with rod-shape were obtained. Cu⁰/Fe₃O₄-nanorod catalyst presents higher activity and stability for the dehydrogenation of isoamylic alcohol than Cu/Fe₃O₄-nanoparticles, due to Cu⁰ nanoparticles supported on the rod-shaped Fe₃O₄ exhibits higher structure stability.
- CuFe₄O_x composite,
- XPS,
- dehydrogenation of isoamylic alcohol
1. [1]
  Li Y, Liu Q Y, Shen W J. Dalton Trans., 2011, 40(22):5811-5826 doi: 10.1039/c0dt01404d
2. [2]
  CAO Xiao-Feng, ZHANG Lei, LI Zhao-Qian, et al. Chinese J. Inorg. Chem., 2012, 28(11):2373-2378
3. [3]
  HU Han-Mei, DENG Cong-Hai, SUN Feng -Xia, et al. Chinese J. Inorg. Chem., 2012, 28(2):405-410
4. [4]
  Ratnasamy C, Wagner J P. Catal. Rev. Sci. Eng., 2009, 51(3):325-440 doi: 10.1080/01614940903048661
5. [5]
  Gawande M B, Goswami A, Felpin F, et al. Chem. Rev., 2016, 116(6):3722-3811 doi: 10.1021/acs.chemrev.5b00482
6. [6]
  DING Ying-Ru, YAO Jian-Hua, LIU Qi-Sheng, et al. Chinese J. Inorg. Chem., 1989, 5(1):119-121
7. [7]
  Estrella M, Barrio L, Zhou G, et al. J. Phys. Chem. C, 2009, 113(32):14411-14417 doi: 10.1021/jp903818q
8. [8]
  Takeguchi T, Kani Y, Inoue M, et al. Catal. Lett., 2002, 83(1/2):49-53 doi: 10.1023/A:1020653414607
9. [9]
  Yang S C, Su W N, Lin S D, et al. Appl. Catal., B, 2011, 106(3/4):650-656
10. [10]
  Kameoka S, Tanabe T, An P T. Catal. Lett., 2005, 100(1/2):89-93
11. [11]
  Carotenuto G, Tesser R, Serio M D, et al. Catal. Today, 2013, 203(203):202-210
12. [12]
  Shiau C Y, Chen S, Tsai J C, et al. Appl. Catal., A, 2000, 198(1/2):95-102
13. [13]
  Crivello M, Pérez C, Fernández J, et al. Appl. Catal., A, 2007, 317(1):11-19 doi: 10.1016/j.apcata.2006.08.035
14. [14]
  Mou X L, Zhang B S, Li Y, et al. Angew. Chem. Int. Ed., 2012, 51(12):2989-2993 doi: 10.1002/anie.201107113
15. [15]
  Khan A, Smirniotis P G. J. Mol. Catal. A:Chem., 2008, 280(1/2):43-51
16. [16]
  Reddy G K, Gunasekera K, Boolchand P, et al. J. Phys. Chem. C, 2011, 115(15):7586-7595 doi: 10.1021/jp2003084
17. [17]
  Kameoka S, Tanabe T, An P T. Appl. Catal., A, 2010, 375(1):163-171 doi: 10.1016/j.apcata.2009.12.035
18. [18]
  Faungnawakij K, Kikuchi R, Fukunaga T, et al. Catal. Today, 2008, 138(3/4):157-161
19. [19]
  Poulston S, Parlett P M, Stone P, et al. Surf. Interface Anal., 1996, 24(12):811-820 doi: 10.1002/(ISSN)1096-9918
20. [20]
  Tang X, Zhang B, Yong L, et al. Appl. Catal., A, 2005, 288(1/2):116-125
21. [21]
  Zeng S H, Liu K W, Zhang L, et al. J. Power Sources, 2014, 261(5):46-54
22. [22]
  Qi L, Yu Q, Dai Y, et al. Appl. Catal., B, 2012, 119-120(21):308-320
