Citation: XIE Qing-Fan, YAO Yong-Gang, JIANG Yan, HONG Si-Yu, CHEN Yan-Min. Syntheses, Structures and Characterization of Cu (Ⅱ) and Co (Ⅲ) Complexes Formed by a Tripodal Tetradentate Schiff Base[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(5): 867-873. doi: 10.11862/CJIC.2017.101 shu

Syntheses, Structures and Characterization of Cu (Ⅱ) and Co (Ⅲ) Complexes Formed by a Tripodal Tetradentate Schiff Base

College of Chemical Engineerng and Material, Quanzhou Normal University, Quanzhou, Fujian 362000, China

Corresponding author: CHEN Yan-Min, qzucym@163.com
Received Date: 3 January 2017
Revised Date: 16 March 2017

Figures(7)

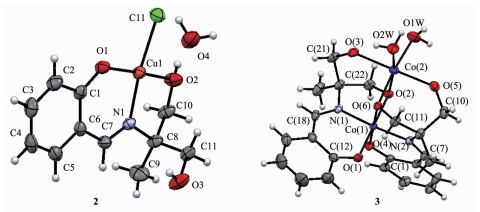

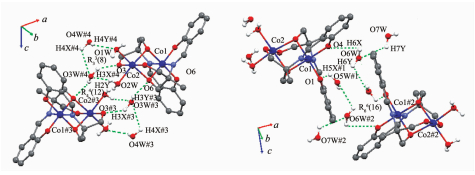

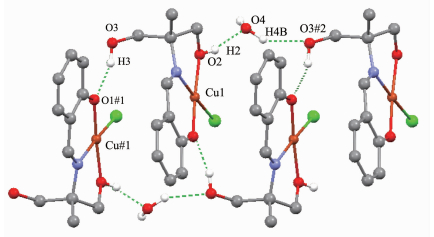

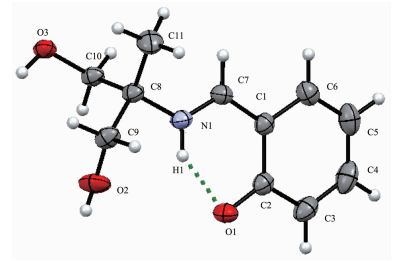

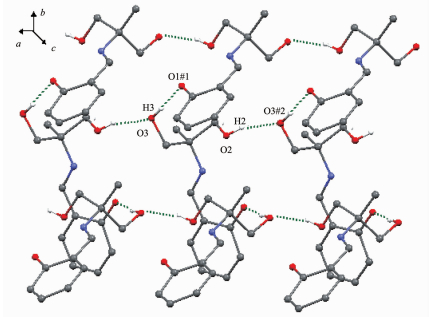

A multidentate Schiff base ligand (H₃Lds, 1) with[NO₃] donor set, derived from the condensation of salicylaldehyde and 2-Amino-2-methyl-1, 3-propanediol, reacted with copper (Ⅱ) chloride or cobalt (Ⅱ) acetate to yield two complexes[CuCl (H₂Lds)]·H₂O (2) and[Co₂(H₂O)₂(Lds)₂]·5H₂O (3). The ligand and complexes were characterized by elemental analysis, IR, UV spectra and X-ray diffraction analysis. The results reveal that 1 crystallizes in orthorhombic space group P2₁2₁2₁, 2 with Cu (Ⅱ) in distorted square-planar coordination in orthorhombic space group Pbca, 3 with Co (Ⅲ) in distorted coordination octahedron in monoclinic space group P2₁/c, respectively. The H₃Lds is linked by intermolecular H-bonds to form two-dimension supramolecular network, while both complexes are connected by intermolecular hydrogen-bonding interactions to form a supramolecular chains, respectively.
- schiff base,
- complexes,
- crystal structure,
- hydroxyl-rich ligand
1. [1]
  Su F, Lu L P, Zhu M L, et al. J. Mol. Struct., 2016, 1108:451-457 doi: 10.1016/j.molstruc.2015.12.037
2. [2]
  Xiao Z Y, Yang X, Zhao S W, et al. J. Solid State Chem., 2016, 234:36-47 doi: 10.1016/j.jssc.2015.11.034
3. [3]
  Yi L J, Xu G C, Zhang L, et al. Inorg. Chem. Commun., 2014, 45:36-39 doi: 10.1016/j.inoche.2014.03.041
4. [4]
  Jiang G Q, Li S J, Zhang Y Q, et al. Inorg. Chem. Commun., 2014, 46:172-175 doi: 10.1016/j.inoche.2014.05.021
5. [5]
  YANG Xiao-Xun, LENG Ji-Dong, LIU Jun-Liang, et al. Chinese J. Inorg. Chem., 2015, 31(9):1831-1838
6. [6]
  Hoshiko J A, Wang G, Ziller J W, et al. Dalton Trans., 2008:5712-5714
7. [7]
  Brechin E K. Chem. Commun., 2005:5141-5153
8. [8]
  Murugesu M, Wernsdorfer W, Abboud K A, et al. Angew Chem. Int. Ed., 2005, 44:892-896 doi: 10.1002/(ISSN)1521-3773
9. [9]
  Moragues-Canovas M, Talbot-Eeckelaers C, Catala L, et al. Inorg. Chem., 2006, 45:7038-7040 doi: 10.1021/ic0605773
10. [10]
  Oshio H, Hoshino N, Ito T, et al. J. Am. Chem. Soc., 2004, 126:8805-8812 doi: 10.1021/ja0487933
11. [11]
  Oshio H, Nihei M, Yoshida A, et al. Chem. Eur. J., 2005, 11:843-848 doi: 10.1002/(ISSN)1521-3765
12. [12]
  Piligkos S, Rajaraman G, Soler M, et al. J. Am. Chem. Soc., 2005, 127:5572-5580 doi: 10.1021/ja042302x
13. [13]
  Sheldrick G M. SHELXTL, Program for X-ray Crystal Structure Solution and Refinement, University of Göttingen, Germany, 1997.
14. [14]
  Eltayeb N E, Teoh S G, Fun H K, et al. Acta Crystallogr. Sect. E, 2010, E66:o1262-o1263
15. [15]
  Gao Y L, Peng X J, Sun S G, et al. Chinese J. Struct. Chem., 2004, 23(11):1262-1265
16. [16]
  Zhang R L, Zhao J S, Xi X L, et al. Russ. J. Coord. Chem., 2009, 35(9):6912-697
17. [17]
  Rodionova L I, Smirnov A V, Borisova N A, et al. Inorg. Chim. Acta, 2012, 392:221-228 doi: 10.1016/j.ica.2012.06.017
18. [18]
  Khalaji A D, Maghsodlou Rad S, Grivani G, et al. Chin. J. Chem., 2011, 29:1613-1616 doi: 10.1002/cjoc.v29.8
