Citation: LIU Ping, ZHU Ding, YANG Jun, HUANG Lan-Xiang, CHEN Yun-Gui. Electrochemically Self-Assembled Fe/Cu Nanocomposite with Improved High-Rate and Low-Temperature Performances for Nickel-Iron Alkaline Battery[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(5): 779-786. doi: 10.11862/CJIC.2017.089 shu

Electrochemically Self-Assembled Fe/Cu Nanocomposite with Improved High-Rate and Low-Temperature Performances for Nickel-Iron Alkaline Battery

LIU Ping ¹ ,
ZHU Ding ^2,*,, ,
YANG Jun ¹ ,
HUANG Lan-Xiang ¹ ,
CHEN Yun-Gui ^1,*,,

1.
College of Materials Science and Engineering, Sichuan University, Chengdu 610065, China
2.
Institute of New Energy and Low-Carbon Technology, Sichuan University, Chengdu 610065, China

Corresponding author: ZHU Ding, zhuding@scu.edu.cn CHEN Yun-Gui, ygchen60@aliyun.com
Received Date: 29 December 2016
Revised Date: 11 March 2017

Figures(7)

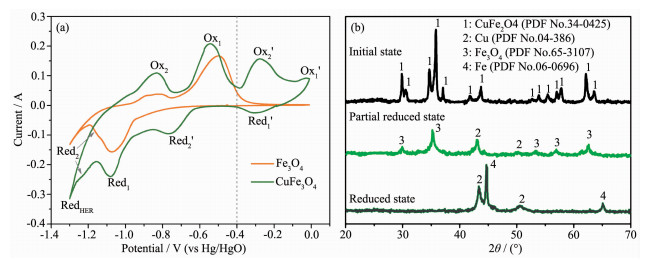

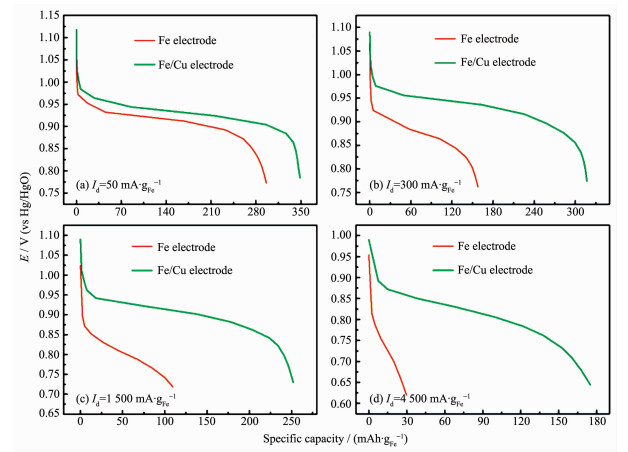

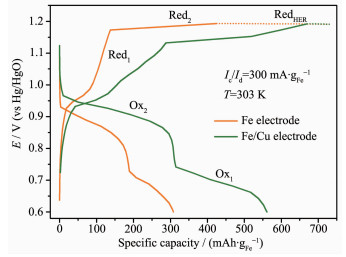

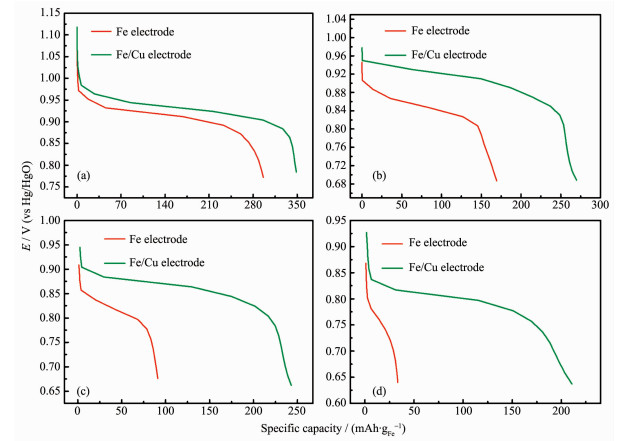

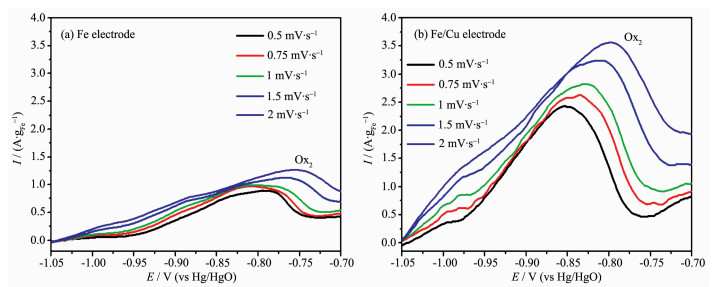

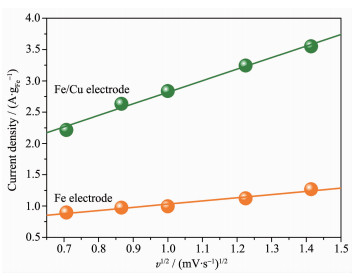

Fe/Cu nanocomposite was simply self-assembled through the cathodic decomposition of tetragonal spinel CuFe₂O₄ (t-CuFe₂O₄) in alkaline solution. The phase transition from t-CuFe₂O₄ to Cu/Fe₃O₄, and eventually to Fe/Cu composite was monitored by cyclic voltammetry (CV) and X-ray powder diffraction (XRD). Transmission electron microscope (TEM), selected area electron diffraction (SAED) and scanning TEM-energy dispersive X-ray (STEM-EDX) observations showed that the electro-crystallized copper and iron nanoparticles dispersed homogeneously and contacted intimately. When the Fe/Cu nanocomposite electrode was tested as the anode for nickel-iron (Ni-Fe) rechargeable battery, it exhibited enhanced discharge capacity, charge-acceptance and especially remarkable high-rate and low-temperature performances. Excellent capacity output and potential characteristics were achieved at high discharge current density (4 500 mA·g_Fe^-1) or low operation temperature (-40℃), respectively. Linear scanning voltammetry (LSV) analyses demonstrated that the incorporation of in situ formed copper facilitated the anodic kinetics of active iron, resulting to the markedly enhanced high-rate and low-temperature discharge-ability of electrode.
- copper ferrite,
- self-assembly,
- nanocomposite,
- iron alkaline electrode,
- high-rate and low temperature performance
1. [1]
  Shukla A K, Venugopalan S, Hariprakash B. J. Power Sources, 2001, 100:125-148 doi: 10.1016/S0378-7753(01)00890-4
2. [2]
  Ibrahim H, Ilinca A, Perron J. Renewable Sustainable Energy Rev., 2008, 12:1221-1250 doi: 10.1016/j.rser.2007.01.023
3. [3]
  Brodd R J, Linden D, Reddy T B. Handbook of Batteries. 3rd Ed. New York:McGraw-Hill, 2002:25-45
4. [4]
  Kalaignan G P, Muralidharan V S, Vasu K I. J. Appl. Electrochem., 1987, 17:1083-1092 doi: 10.1007/BF01024374
5. [5]
  Ravikumar M K, Balasubramanian T S, Shukla A K. J. Power Sources, 1995, 56:209-212 doi: 10.1016/0378-7753(95)80037-H
6. [6]
  Periasamy P, Bahu B R, Iyer S V. J. Power Sources, 1996, 62:9-14 doi: 10.1016/S0378-7753(96)02391-9
7. [7]
  Ravikumar M K, Balasubramanian T S, Shukla A K, et al. J. Appl. Electrochem., 1996, 26:1111-1115
8. [8]
  Caldas C A, Lopes M C, Carlos I A. J. Power Sources, 1998, 74:108-112 doi: 10.1016/S0378-7753(98)00039-1
9. [9]
  Souza C A C, Carlos I A, Lopes M C, et al. J. Power Sources, 2004, 132:288-290 doi: 10.1016/j.jpowsour.2003.12.043
10. [10]
  Wang Y D, Ai X P, Cao Y L, et al. Electrochem. Commun., 2004, 6:780-784 doi: 10.1016/j.elecom.2004.06.002
11. [11]
  Hariprakash B, Martha S K, Hegde M S, et al. J. Appl. Electrochem., 2005, 35:27-32 doi: 10.1007/s10800-004-2052-y
12. [12]
  Hang B T, Watanabe T, Eashira M, et al. J. Power Sources, 2005, 150:261-271 doi: 10.1016/j.jpowsour.2005.02.028
13. [13]
  Casellato U, Comisso N, Mengoli G. Electrochim. Acta, 2006, 51:5669-5681 doi: 10.1016/j.electacta.2006.01.057
14. [14]
  Ujimine K, Tsutsumi A. J. Power Sources, 2006, 160:1431-1435 doi: 10.1016/j.jpowsour.2006.03.002
15. [15]
  Hang B T, Yoon S H, Okada S, et al. J. Power Sources, 2007, 168:522-532 doi: 10.1016/j.jpowsour.2007.02.067
16. [16]
  Hang B T, Hayashi H, Yoon S H, et al. J. Power Sources, 2008, 178:393-401 doi: 10.1016/j.jpowsour.2007.12.012
17. [17]
  Huang K C, Chou K S. Electrochem. Commun., 2007, 9:1907-1912 doi: 10.1016/j.elecom.2007.05.001
18. [18]
  Kao C Y, Chou K S. J. Power Sources, 2010, 195:2399-2404 doi: 10.1016/j.jpowsour.2009.08.008
19. [19]
  Urbaniak J, Skowroński J M, Olejnik B. J. Solid State Electrochem., 2010, 14:1629-1635 doi: 10.1007/s10008-010-1004-1
20. [20]
  Kao C Y, Tsai Y R, Chou K S. J. Power Sources, 2011, 196:5746-5750 doi: 10.1016/j.jpowsour.2010.12.076
21. [21]
  Shin H C, Choi S C. Chem. Mater., 2001, 13:1238-1242 doi: 10.1021/cm000658b
22. [22]
  Cudennec Y, Lecerf A, Gérault Y. Eur. J. Solid State Inorg. Chem., 1995, 32:1013-1018
23. [23]
  Kameoka S, Tanabe T, Tsai A P. Appl. Catal. A, 2010, 375:163-171 doi: 10.1016/j.apcata.2009.12.035
24. [24]
  Bard A J, Faulkner L R. Electrochemical Methods:Funda-mental and Applications. New York:John Wiley & Sons. Inc., 1980:6-20
25. [25]
  Shoesmith D W, Taylor P, Bailey M G, et al. Electrochim. Acta, 1978, 23:903-916 doi: 10.1016/0013-4686(78)87014-5
26. [26]
  Asakura S, Nobe K. J. Electrochem. Soc., 1991, 118:13-18
