Citation: TANG Jun-Jie, LIU Yan, TIAN Lei, ZHANG Li-Li, WANG Dong-Xing, ZHANG Ting-An. Influence of Crystal Growth Direction Selectivity on Morphology and Electrochemical Activity of Spherical Nickel Hydroxide[J]. Chinese Journal of Inorganic Chemistry, ;2017, 33(2): 354-360. doi: 10.11862/CJIC.2017.049 shu

Influence of Crystal Growth Direction Selectivity on Morphology and Electrochemical Activity of Spherical Nickel Hydroxide

Key Laboratory for Ecological Utilization of Multimetallic Mineral, Ministry of Education, Northeastern University, Shenyang 110819, China

Corresponding author: LIU Yan, liuyan@smm.neu.edu.cn
Received Date: 7 September 2016
Revised Date: 8 December 2016

Figures(8)

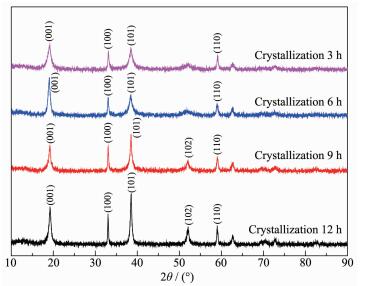

The spherical nickel hydroxide was synthesized by chemical precipitation method under the same physical and chemical conditions but different aging times. The morphologies of the spherical nickel hydroxide were characterized by SEM. It was found that with the increase of the aging time, the morphology of the spherical nickel hydroxide changed from irregular crystals to regular spherical crystals. XRD patterns showed that when the aging time was 3 h, the growth of (001)crystal plane reached a steady state, and it did not transform with the increase of the aging time. However, (100)crystal plane and (101)crystal plane continued to grow with the increase of the aging time, and the relative crystallinity reached a maximum value. The shapes of the diffraction peaks were sharp and high when the aging time was 12 h, which indicated that the structural regularity strengthened. The influence of crystal growth direction selectivity on the morphology and electrochemical activity were discussed in the crystallization process of spherical nickel hydroxide.
- spherical nickel hydroxide,
- crystal plane,
- diffraction peak,
- relative crystallinity
1. [1]
  WANG Ji-Yang. Physics, 2001, 6:332-339
2. [2]
  FENG Shi-Hong, JIA Tai-Xuan, DU Hui-Ling, et al. Non-Ferrous Min. Metall., 2004, 20(5):48-50
3. [3]
  Ma C Y, Liu J J, Wang X Z. Particuology, 2016, 2:1-18
4. [4]
  Lee C H, Lee C H. Korean J. Chem. Eng., 2005, 22:712-716 doi: 10.1007/BF02705787
5. [5]
  Huo Y, Liu T, Liu H, et al. Chem. Eng. Sci., 2016:126-139
6. [6]
  Bagheri G H, Bonadonna C, Manzella I, et al. Powder Technol., 2015, 270:141-153 doi: 10.1016/j.powtec.2014.10.015
7. [7]
  Borchsert C, Sundmacher K. Chem. Eng. Technol., 2011, 34:545-556 doi: 10.1002/ceat.v34.4
8. [8]
  Ramesh T N. J. Phys. Chem. B, 2009, 113:13014-13017 doi: 10.1021/jp906578u
9. [9]
  Deschamps J R. Life Sci., 2010, 86:585-589 doi: 10.1016/j.lfs.2009.02.028
10. [10]
  Deschamps J R, George C. Trends Anal. Chem., 2003, 22:561-564 doi: 10.1016/S0165-9936(03)00902-6
11. [11]
  Cachau R E, Podjarny A D. J. Mol. Recognit., 2005, 18:196-202 doi: 10.1002/(ISSN)1099-1352
12. [12]
  Wouters J, Ooms F. Curr. Pharm. Des., 2001, 7:529-545 doi: 10.2174/1381612013397889
13. [13]
  Blundell T L, Jhoti H, Abell C. Nat. Rev. Drug Discovery, 2002, 1:45-54 doi: 10.1038/nrd706
14. [14]
  XU Gang, LI Ying-Jun, GU Zhi, et al. Chinese J. Inorg. Chem., 2016, 32(7):1135-1140 doi: 10.11862/CJIC.2016.158
15. [15]
  Su Q F, Shi W M, Li D M, et al. Nucl. Instrum. Methods Phys. Res. Sect. A, 2011, 659:299-301 doi: 10.1016/j.nima.2011.08.024
16. [16]
  TANG Jun-Jie, LIU Yan, TIAN Lei, et al. Chinese J. Inorg. Chem., 2016, 32(7):1127-1134 doi: 10.11862/CJIC.2016.156
