Citation: WANG Wen-Qin, ZHANG Zhi-Hua, ZU Guo-Qing, SHEN Jun, ZHOU Bin, YAO Xian-Dong. Preparation of Heat-Resistant Silica/Alumina Composite Aerogel by Adding Trimethylethoxysilane[J]. Chinese Journal of Inorganic Chemistry, ;2016, 32(1): 117-123. doi: 10.11862/CJIC.2016.020 shu

Preparation of Heat-Resistant Silica/Alumina Composite Aerogel by Adding Trimethylethoxysilane

WANG Wen-Qin ¹ ,
ZHANG Zhi-Hua ^1,*,, ,
ZU Guo-Qing ^1,*,, ,
SHEN Jun ¹ ,
ZHOU Bin ¹ ,
YAO Xian-Dong ²

1.
Shanghai Key Laboratory of Special Artificial Microstructure Materials and Technology, Pohl Institute of Solid State Physics, Tongji University, Shanghai 200092, China
2.
Nano High-tech Co., Ltd., Shaoxing, Zhejiang 3, 2000, China

Corresponding author: ZHANG Zhi-Hua, zzhtj@tongji.edu.cn ZU Guo-Qing, guoqingzu@yahoo.com
Received Date: 5 September 2015
Revised Date: 2 November 2015

Figures(6)

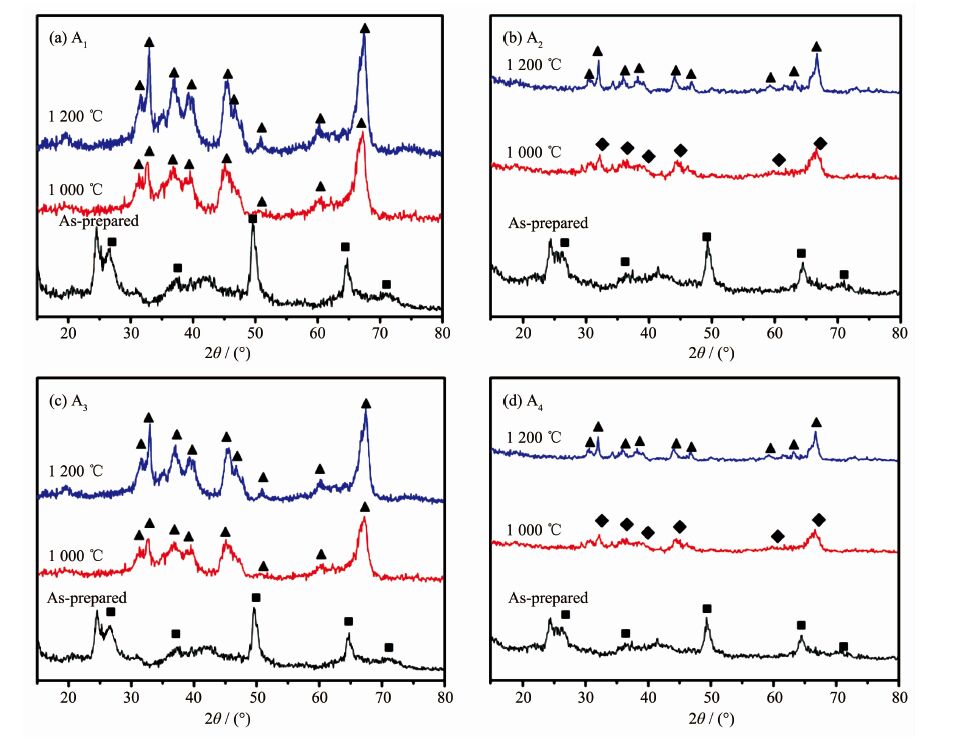

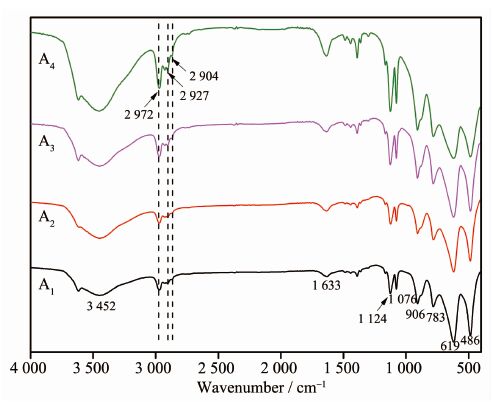

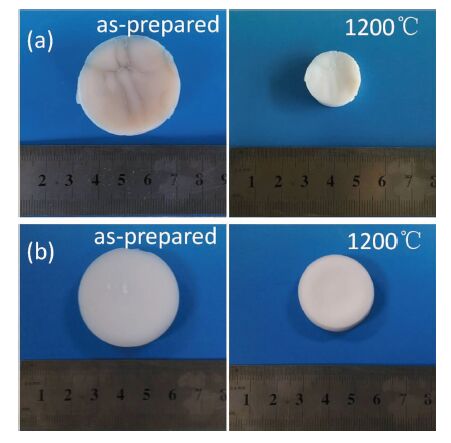

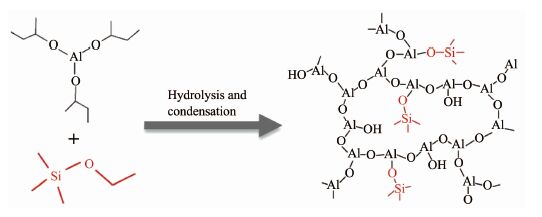

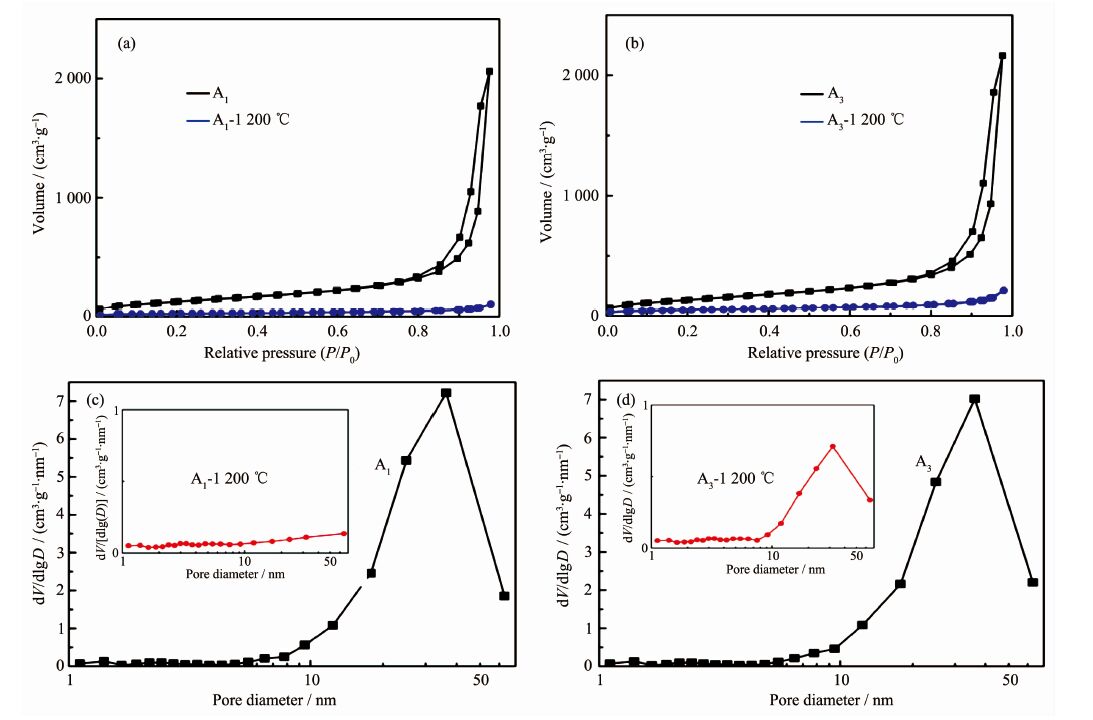

Silica/alumina composite aerogels with good heat resistance and formability were prepared by a sol-gel method combined with the ethanol supercritical fluid drying technique using aluminum trisec butoxide and trimethylethoxysilane (TMEO) as precursors. Transmission electron microscope, N₂ adsorption analyzer, fourier transform infrared spectroscope, X-ray diffraction and hot disk thermal analyzer were used to characterize the morphology, pore structure, surface groups, phases, thermal properties, etc. The-Si-(CH₃)₃ groups were introduced onto the alumina nanoparticles by adding TMEO during sol-gel process. It is demonstrated that these groups would produce SiO₂ nanoparticles, which effectively restricted the crystal growth of Al₂O₃ nanoparticles and led to the excellent heat resistance of the composite aerogels. The linear shrinkage of the obtained composite aerogel was as low as 16% and the corresponding specific surface area was as high as 141 m²·g^-1 after heat treatment at 1 200 ℃. This would further contribute to the wide application of aerogels on high-temperature thermal insulation, adsorption, catalysis, etc.
- silica/alumina composite aerogel,
- trimethylethoxysilane,
- heat resistance,
- high specific surface area
1. [1]
  ZHANG Zhi-Hua, WANG Wen-Qin, ZU Guo-Qing, et al. J. Aeronaut. Mater., 2015, 35(1):96-105
2. [2]
  Poco J F, Satcher J H, Hrubesh L M. Non-Cryst. Solids, 2001, 285(1):57-63
3. [3]
  Mizushima Y, Hori M. J. Mater. Res., 1993, 8(11):2993-2999 doi: 10.1557/JMR.1993.2993
4. [4]
  Saliger R, Heinrich T, Gleissner T, et al. J. Non-Cryst. Solids, 1995, 186:113-117 doi: 10.1016/0022-3093(95)00080-1
5. [5]
  Himmel B, Gerber T, Burger H, et al. J. Non-Cryst. Solids, 1995, 186:149-158 doi: 10.1016/0022-3093(95)00045-3
6. [6]
  Horiuchi T, Osaki T, Sugiyama T, et al. J. Non-Cryst. Solids, 2001, 291(3):187-198 doi: 10.1016/S0022-3093(01)00817-1
7. [7]
  Osaki T, Nagashima K, Watari K, et al. J. Non-Cryst. Solids, 2007, 353:2436-2442 doi: 10.1016/j.jnoncrysol.2007.04.016
8. [8]
  FENG Jian, GAO Qin-Fu, WU Wei, et al. Chinese J. Inorg. Chem., 2009, 25(10): 1758-1763
9. [9]
  Zu G Q, Shen J, Zou L P, et al. Chem. Mater., 2013, 25:4757-4764 doi: 10.1021/cm402900y
10. [10]
  Zu G Q, Shen J, Wang W Q, et al. Chem. Mater., 2014, 26: 5761-5772 doi: 10.1021/cm502886t
11. [11]
  Wang W Q, Zhang Z H, Zu G Q, et al. RSC Adv., 2014, 4: 54864-54871 doi: 10.1039/C4RA08832H
12. [12]
  Zu G Q, Shen J, Xu W W, et al. J. Non-Cryst. Solids, 2011, 357(15):2903-2906 doi: 10.1016/j.jnoncrysol.2011.03.031
13. [13]
  Hou H W, Xie Y, Yang Q, et al. Nanotechnology, 2005, 16 (6):741-745 doi: 10.1088/0957-4484/16/6/019
14. [14]
  Li D Y, Lin Y S, Li Y C, et al. Microporous Mesoporous Mater., 2008, 108(1):276-282
15. [15]
  Munhoz JR A H, Novickis R W, Faldini S B, et al. Adv. Sci. Technol., 2010, 76:184-189 doi: 10.4028/www.scientific.net/AST.76
16. [16]
  Boumaza A, Favaro L, Ledion J, et al. Solid State Chem., 2009, 182(5):1171-1176 doi: 10.1016/j.jssc.2009.02.006
17. [17]
  Santos P S, Santos H S, Toledo S P. Mater. Res., 2000, 3(4): 104-114
18. [18]
  Bodaghi M, Mirhabibi A R, Zolfonun H, et al. Phase Transitions, 2008, 81(6): 571-580 doi: 10.1080/01411590802008012
