• The conversion of methanol to propene (MTP), as a non-petroleum route for propene production, is a potential substitute or supplement for the current steam cracking and fluid catalytic cracking units that produce propene. Several MTP processes have been industrialized, including the fixed-bed MTP of Lurgi, Gemany^[1] and the fluid-bed MTP of Tsinghua University, China^[2]; the former used nanosized high-silicon H-ZSM-5 zeolite, whereas the latter employed SAPO-34/SAPO-18 composite molecular sieves as the catalyst. Recently, great efforts have been also made in the synthesis of light olefins directly from syngas^{[3, 4]}.

  The catalytic performance of ZSM-5 zeolite in MTP was related to its textural properties, diffusion limitation, and acidity; especially, a moderate acid strength and density was in general expected^[5], which could be regulated by altering the Si/Al ratio and synthesis conditions^{[6, 7]}. An increase in the aluminum content (i.e. a decrease in the Si/Al ratio) in the MFI zeolites could enhance the propagation of the aromatic-based methylation/dealkylation cycle in comparison with that of the olefin-based methylation/cracking cycle in the methanol-to-hydrocarbons (MTH) process, leading to a higher selectivity to ethene^[8-10].By contrast, as reported by Liu et al^{[11, 12]}, an increase in the Si/Al ratio in ZSM-5 zeolite could weaken the strong acid sites and improve the propene yield and the propene/ethene (P/E) ratio in the MTP products. To further adjust the acid strength and quantity, ZSM-5 zeolite was modified with P and Zr-P^{[4, 13, 14]}; for the conversion of dimethyl ether to propene over P and Zr-P modified ZSM-5 at 723 K, 0.1 MPa and a space velocity of 4.6 h^-1, the conversion of dimethyl ether reached 100%, with a selectivity of 45.4% to propene and a P/E ratio of 9.9.

  On the other hand, the diffusion limitation in ZSM-5 zeolite is determined by the particle size, aggregation, morphology, pore size, and so on. Firoozi et al^[15] reported that in comparison with the micron-sized ZSM-5 zeolite, the nanosized ZSM-5 exhibited higher selectivity to propene, lower initial activity, and lower selectivity to C₄ hydrocarbons; moreover, with the proceeding of the MTP reaction, the activity of nanosized ZSM-5 zeolite is significantly higher than that of micron-sized ZSM-5 zeolite. In addition, the "alkali-treated" nanosized-ZSM-5 zeolite could form meso-porous structure, which was beneficial to reducing the diffusion limitation and thus enhancing its catalytic performance in MTP. Mei et al^[16] also observed that in comparison with conventional ZSM-5, the selectivity to propene over the alkali-treated ZSM-5 zeolite was increased from 33% to 42%, whereas the selectivity to ethene was decreased from 13% to 4.5%, with a P/E ratio approaching 10.

  In our previous works^{[17, 18]}, MO_x/H-ZSM-5 (M= Pb, Sb, and Bi) catalysts were prepared by a wet impregnation method with nitrate precursors and used in MTP; it was found that the modification with proper metal component could reduce the apparent pore size and the strength and quantity of strong acid sites in H-ZSM-5, which was of benefit in improving the selectivity to propene.

  For the synthesis of ZSM-5 zeolite, it is well known that a high fluoride/silicon ratio in the synthesis mixture under acidic or neutral media was able to reduce the number of strong acid sites. However, the presence of fluorine ion may also reduce the nucleation and crystal growth rates, producing relatively larger ZSM-5 crystals^[19-24]. We speculate that by using hydroxyl ions in addition to fluorine as a second mineralizer, the overgrowth of particle size could be avoided. To test this hypothesis, double mineralizers were used in this work to adjust the textural properties of ZSM-5 zeolite; the effect of F^-/Al₂O₃ molar ratio on the catalytic performance of synthesized H-ZSM-5 in MTP as well as the relationship between the structure and catalytic performance were then investigated.

  1.   Experimental

  1.1   Catalyst preparation

  ZSM-5 was synthesized by a static hydrothermal approach, using tetraethoxysilane (chemically pure, Sinopharm Chemical Reagent Co., Ltd), sodium aluminate, and tetrapropylammonium hydroxide (TPAOH, 40%) as the silicon source, aluminum source, and template agent, respectively. NaOH (chemically pure, Sinopharm Chemical Reagent Co., Ltd) and NH₄F (chemically pure, with a content of 96.6%, Tianjin Damao Chemical Reagent Factory) were used as the mineralizers. The molar composition of the synthesis mixture is F^-:Al₂O₃:SiO₂:TPAOH :Na₂O:H₂O = x :1:150:15:7:100; x = 0, 6, 12, and 18, where the corresponding catalysts are numbered as S-1, S-2, S-3, and S-4, respectively. To form the synthesis mixture, sodium aluminate, TPAOH, NaOH, and given amount of NH₄F were dissolved in water to form a solution, which was stirred for 0.5 h at room temperature; tetraethoxysilane was then added to this solution under stirring. The mixture was further stirred to obtain a homogeneous gel, with a pH value of higher than 7. The gel was transferred to a stainless-steel autoclave with a polytetrafluoroethene (PTFE) liner; the sealed autoclave was placed in an air oven maintained at 443 K for 24 h. After cooling and centrifugal separation, the sediment was washed with water until the pH value reached 8. The sediment was dried overnight at 373 K and then calcinated at 823 K for 8 h to remove the organic template and to obtain the Na-ZSM-5 zeolite powder. Ion exchange was carried out twice with 1 mol/L hydrochloric acid at 363 K for 4 h, followed by calcination at 823 K in air for 8 h to give the H-form ZSM-5 products. Finally, the ZSM-5 catalysts of 20-40 mesh were prepared by tableting, crushing, and sieving.

  1.2   Catalyst characterization

  X-ray diffraction (XRD) patterns were collected on a Rigaku D/max-2500 powder diffractometer with Ni-filter Cu Kα radiation (λ= 0.15418 nm). The diffraction patterns were recorded in the angle range of 2θ = 5°-35° with steps of 0.02° and an interval of 0.5 s at 40 kV (tube voltage) and 30 mA (tube current). The relative crystallinity of ZSM-5 was calculated based on the intensity of the peaks in 2θ = 23°-25°, using S-1 as the reference:

  $ C\left( \% \right) = \frac{{\sum I(2\theta = 23^\circ - 25^\circ )}}{{\sum {I_0}(2\theta = 23^\circ - 25^\circ )}} \times 100\% $

  (1)

  Elemental analysis for the Si/Al ratio was performed on an inductively coupled plasma-atomic emission spectrometer (ICP-AES, Shimadzu ICPE-9000).

  The morphology and size of the catalysts were characterized by a Jeol 6300-F scanning electron microscope (SEM, Shimadzu Corporation) operated at 10-15 kV. The catalyst was placed on a carbon tape without any metal coating.

  N₂ adsorption/desorption was performed at 77 K in an ASAP 2000 apparatus. The total specific surface areas were calculated according to the Brunauer-Emmett-Teller (BET) method, and the micropore surface areas were determined by the t-plot method.

  NH₃-TPD analysis was performed on a TL5000-2 multi-functional adsorption instrument (Tianjin Xianquan Industry and Trade Company) using a thermal conductivity detector to monitor the NH₃ desorption. The H-ZSM-5 catalyst (0.1 g) was heated at 873 K in a He flow (30 mL/min) for 3 h, and then cooled to 373 K. NH₃ adsorption was performed under a flow of 10% NH₃/He (30 mL/min) for 1 h. Then, the catalyst was flushed with He gas at a rate of 30 mL/min for 1 h. The NH₃-TPD was promptly started at a heating rate of 10 K/min from 373 to 873 K.

  FT-IR spectra of adsorbed pyridine were measured on an IR 560 FT-IR spectrometer (Nicolet). The self-supporting disk (15-20 mg) of the catalyst was placed in an IR cell equipped with a vacuum system, and pretreated by evacuation (10^-2 Pa) at 623 K for 2 h. It was then cooled to 473 K and kept at this temperature for 10 min. The spectrogram at 473 K was scanned as the background. Pyridine was adsorbed onto the catalyst disk at 298 K for 1 h, physically desorbed at 473 K for 1 h, and then the infrared spectra within 1700-1400 cm^-1 were recorded.

  1.3   Catalytic test

  The MTP reaction was carried out at atmospheric pressure in a fixed-bed stainless steel reactor with an inner diameter of 15 mm and length of 550 mm. The catalyst powder was compressed to wafers, then crushed and sieved to 40-60 mesh particles. In all tests, 0.5 g catalyst was placed in the middle of the reactor and activated in situ at 823 K for 3 h under an N₂ flow of 30 mL/min. The products were analyzed online with a gas chromatograph (GC-950) equipped with a flame ionization detector and an HP-Plot Q capillary column (30 m, 0.53 mm i.d., stationary phase thickness of 40 μm). Both methanol and dimethyl ether (DME) were regarded as reactants in the calculations.

  2.   Results and discussion

  2.1   Effect of F^-/Al₂O₃ ratio on the structure and acidity of H-ZSM-5 catalyst

  Figure 1 shows that the zeolite catalysts synthesized with or without fluoride ions all have similar XRD patterns, with the characteristic diffraction peaks of H-ZSM-5 at 7.9°, 8.8°, 23.1°, 23.3°, 23.9°, and 24.4°^[25]. The sample S-4 (F^-/Al₂O₃=18) displays an exceptionally strong diffraction peak at 21.8°, which is the characteristic peak of microcrystalline a-SiO₂^[26]. The amorphous zeolites lacking in long-range order with compositional and chemical similarities to the parent MFI zeolite exhibits a peak at 18.5°^{[27, 28]}. Moreover, the diffraction peaks shift slightly toward lower angles with the increase of the F^-/Al₂O₃ ratio, due to an increase in the Si/Al ratio of H-ZSM-5, as given in Table 1. In addition, with an increase in the F^-/Al₂O₃ ratio, the relative crystallinities of the synthesized H-ZSM-5 zeolites (S-1, S-2, S-3, and S-4) are decreased (100%, 64%, 63%, and 23%, respectively). However, the SEM images shown in Figure 2 suggest that all the zeolite products display mainly spherical or nearly spherical morphology.

  Figure 1

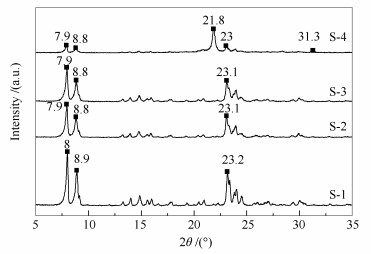

  Figure 1.  XRD patterns of various H-ZSM-5 zeolites: S-1, S-2, S-3, and S-4

  下载: 全尺寸图片 幻灯片

  Table 1



  Table 1.  Relative crystallinity, SiO₂/Al₂O₃ ratio, and textural properties of H-ZSM-5 prepared with different F^-/Al₂O₃ ratios

  下载: 导出CSV

  Catalyst	Relative crystallinitya/%	SiO2/Al2O3b	Surface area c A/(m2·g-1)				Pore volume v/(cm3·g-1)
  			total	micro	meso		totalf	microg
  S-1	100	285	388.0	356.0	32.0		0.2422	0.1774
  S-2	64	295	386.7	348.7	37.9		0.2277	0.1740
  S-3	63	359	154.8	126.8	27.9		0.1238	0.0657
  S-4	23	395	109.7	92.6	17.1		0.0797	0.0476
  note: a: the relative crystallinity of ZSM-5 was calculated based on the intensity of the diffraction peaks at 2θ of 22°-25°, using S-1 as the reference; b: the SiO2/Al2O3 ratio was determined by ICP-AES; c: total BET surface area was obtained by the BET method using adsorption data in p/p0 ranging from 0.05 to 0.25, whereas micro and meso-surface areas were determined by the t-plot method; d: the total pore volume was estimated from the adsorbed amount at p/p0 = 0.99, whereas the micro pore volume was determined by the t-plot method

  Figure 2



  Figure 2.  SEM images of various H-ZSM-5 zeolites: S-1, S-2, S-3, and S-4

  下载: 全尺寸图片 幻灯片

  The crystallinity decrease of ZSM-5 synthesized in OH^--F^- system can be attributed to four reasons. First, fluoride ions may not only promote the hydrolysis of tetraethoxysilane, but also accelerate the generation of Si-O^- structural units^[29]. The fluorine (and OH^-) -silicon (aluminum) complex is formed in the presence of silicon and aluminum sources^[30], leading to a decrease in the amount of formed Si-O-Al^- structural units. Therefore, the double mineralizers could slow down the consumption of aluminum source, leading to an increase in the Si/Al ratio of synthesized H-ZSM-5 zeolite; as given in Table 1, the Si/Al ratio of H-ZSM-5 decreases significantly with an increase in the F^-/Al₂O₃ ratio of the synthesis mixture. Second, the electrostatic interaction between TPA⁺ and fluorine (and OH^-) -silicon (aluminum) complex may weaken the interactions among Si-O^-, Si-O-Al^-, and O-Al^-, which can then reduce the template effects of TPA⁺ and then alter the aluminum distribution. Third, the presence of fluoride ion may also reduce the nucleation and crystal growth rates^[31]; the crystallization of ZSM-5 zeolite may then need a longer time and microcrystalline SiO₂ is then formed during the crystallization process, as shown in Figure 2. Lastly, microcrystalline SiO₂ may also partly cover the crystal face of H-ZSM-5 zeolite (Figure 2). The crystalline grains shown in Figure 2 are basically the same, with the average size smaller than 100 nm. However, they are rather different in the surface morphology: S-1 and S-2 have smooth surface, whereas S-3 and S-4 show some crystallite-like structure, which cannot be removed even by the hydrochloric acid treatment. The XRD results (Figure 1) suggest that such microcrystalline structure is made of SiO₂.

  Table 1 gives the textural properties of H-ZSM-5 prepared with different F^-/Al₂O₃ ratios. Both the surface area and pore volume decrease with the increase of F^-/Al₂O₃ ratios, from 388 m²/g and 0.1774 cm³/g in S-1 to 109.7 m²/g and 0.0476 cm³/g in S-4, respectively. The XRD, N₂ sorption, and SEM results indicate that as the H-ZSM-5 pore openings and channels are modified by microcrystalline SiO₂, the relative crystallinity, surface area, and pore volume all are decreased with the increase of F^-/Al₂O₃ ratio.

  It is well known that a higher Si/Al ratio can reduce the strength and number of strong acid sites in the H-ZSM-5 zeolite. Figure 3 shows that S-1, S-2, S-3, and S-4 all are similar in their characteristic NH₃-TPD profiles. Two desorption peaks are observed, one at low temperature (478 K) corresponds to the weak acid sites, and another at high temperature (713 K) to the strong acid sites^[32]. The peak temperature is related to the acid strength, while the peak area to the quantity of acid sites. Obviously, with the increase of F^-/Al₂O₃ ratio, the desorption peak, i.e. the amount of strong acid sites is signifcantly decreased.

  Figure 3

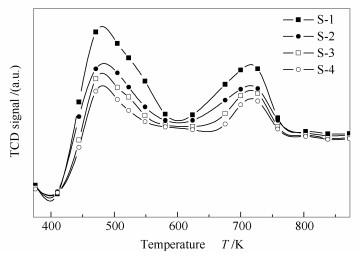

  Figure 3.  NH₃-TPD profiles of various H-ZSM-5 zeolites: S-1, S-2, S-3, and S-4

  下载: 全尺寸图片 幻灯片

  Figure 4 shows the Pyridine-FTIR (Py-FTIR) spectra of S-1, S-2, S-3, and S-4 at 473 K. The peaks for Brønsted and Lewis acid sites lie at 1545 and 1447 cm^-1, respectively. Both Brønsted and Lewis acid sites have a peak at 1493 cm^-1, while physical adsorption displays a peak at 1599 cm^{-1[33, 34]}. S-1, S-2 and S-3 display all these four peaks, whereas S-4 only shows an extremely weak peak at 1447 cm^-1. It means that probably no strong acidic sites in S-3 and S-4 can be detected by Py-FTIR, in contrast with the NH₃-TPD results. Similar results were reported by Campo et al^[35] for SAPO-34 and H-ZSM-5. These results suggest that the H-ZSM-5 pore openings and channels are modified and most of the surfaces are covered by the microcrystalline SiO₂.

  Figure 4

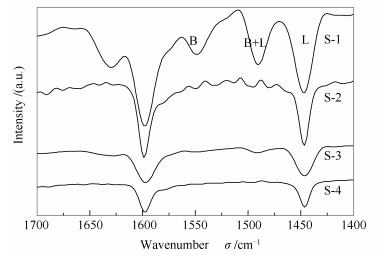

  Figure 4.  Py-FTIR spectra of various H-ZSM-5 zeolites: S-1, S-2, S-3, and S-4

  下载: 全尺寸图片 幻灯片

  2.2   Effect of F^-/Al₂O₃ ratio on the catalytic performance of H-ZSM-5 zeolite

  Figure 5(a) shows the methanol conversion versus the time on stream for MTP over various H-ZSM-5 zeolites. With the exception of S-4, all other H-ZSM-5 catalysts show complete methanol conversion at steady period (from 4 to 36 h), which remains above 96% after 48 h. After that, the methanol conversion decreases gradually with the time on stream, which becomes increasingly pronounced, following the order of S-2, S-1, S-3, and S-4. In contrast, the methanol conversion over S-4 drops to 95% at 36 h, which is attributed to the synergic effect of the acidity and textural properties of the catalysts. S-1 and S-2 have similar textural properties, but S-2 has weaker and fewer strong acid sites than S-1, which may reduce the hydrogen transfer and cyclization reactions and alleviate the coke formation in S-2^[11]. As a result, S-2 is catalytically more stable than S-1. Although S-3 and S-4 have fewer strong acid sites than S-2 and S-1, the modification by microcrystalline SiO₂ hinders the diffusion of methanol and product in the zeolite channels; S-3 and S-4 are then probably deactivated due to carbonaceous deposition just like the small pore molecular sieves such as SAPO-34.

  Figure 5

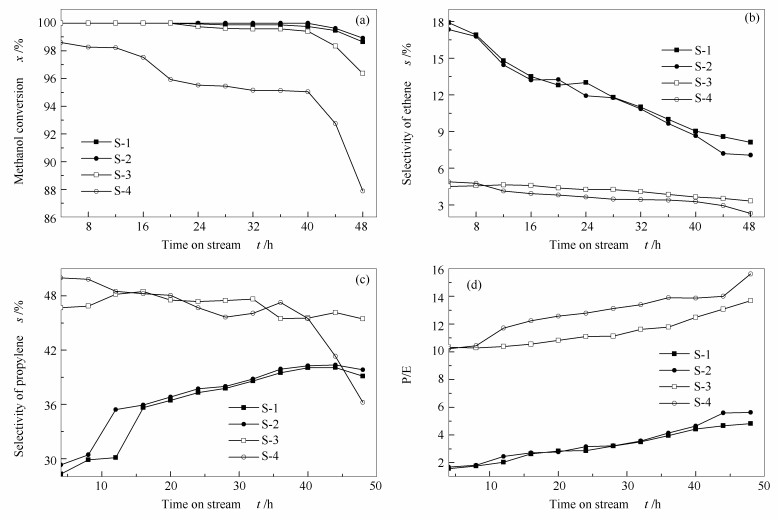

  Figure 5.  Methanol conversion (a), selectivity to ethene (b), selectivity to propene (c), and the P/E ratio (d) for MTP over various H-ZSM-5 zeolites: S-1, S-2, S-3, and S-4

  下载: 全尺寸图片 幻灯片

  Figure 5(b) and 5(c) indicate the selectivity to ethene and propene versus the time on stream, respectively. The selectivity to propene is divided into two groups; over S-1 and S-2 it increases gradually, whereas over S-3 and S-4 it decreases with the time on stream. Nevertheless, at the same time, the selectivity to propene over S-3 and S-4 (> 45%) is far higher than that over S-1 and S-2 (< 40%), although the methanol conversion over the former catalysts is somewhat lower. There are two main possible reasons for the high selectivity to propene over S-3 and S-4. On one hand, they have fewer strong acid sites; as higher alkenes are much more active than ethene and propene^[36], the side-reactions of propene is then suppressed. It was also reported that the propene conversion over H-ZSM-5 is reduced with the decrease of strong acid sites^[37]. On the other hand, polymethylbenzene as the "carbon hydrocarbon pool" active centers can be cracked to ethene and propene^[38]. Modification of the pore openings and channels in H-ZSM-5 by microcrystalline SiO₂ improves the cracking activity of polymethylbenzene (as illustrated in Figure 6) and/or the alkenes methylation/cracking (decreasing the selectivity to ethene), leading to a further increase in the selectivity to propene.

  Figure 6

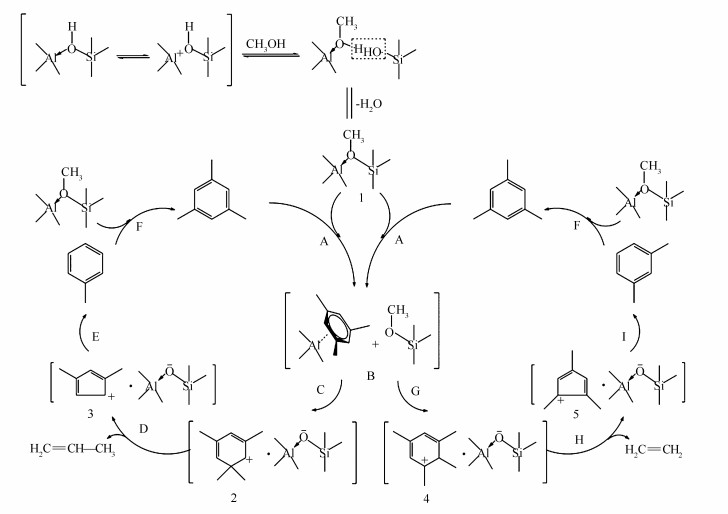

  Figure 6.  Possible reaction pathways from mesitylene to ethene and propene

  下载: 全尺寸图片 幻灯片

  The selectivity to ethene over S-1 and S-2 is much higher than that over S-3 or S-4, which is gradually decreased with the time on stream. Figure 5(d) further illustrates that the P/E ratio of all catalysts increases with the time on stream.

  It is now well-accepted that the conversion of methanol to olefins (MTO) follows the "carbon-hydrocarbon pool" mechanism^{[35, 39]}; the actual active hydrocarbon pool species are dependent on the topology, textural properties, and acid strength and density of the molecular sieves^{[38, 40-50]}. Over the H-ZSM-5 catalysts, ethene and propene were formed from polymethylbenzenes such as dimethylbenzene, trimethylbenzene and tetra-methylbenzene^{[49, 51]} (aromatics-based cycles), whereas higher alkenes (including propene) were formed by alkenes methylation/cracking reactions (alkenes based cycles)^{[36, 49, 52]}. Dimethylbenzene or trimethylbenzene should be more likely to accumulate within the channels of S-3 and S-4, according to aromatics-based cycles, with higher selectivity to ethene than that over S-1 and S-2. Moreover, as the reaction proceeds, more and more cokes should also be deposited near the pore openings and in their channels, prolonging the retention time of dimethylbenzene and trimethylbenzene within the channels and thus increasing the selectivity to ethene. However, our experimental results turn out to be quite opposite to these predictions.

  For the "carbon hydrocarbon pool" mechanism over large pore molecular sieves, the "ring expansion-contraction pairing" route was predominantly supported by experiment and theoretical calculation^[42]. First, the carbocations such as 1, 3-dimethylcyclopentenyl cation, 1, 2, 3-trimethylcyclopentenyl cation, 1, 3, 4-trimethyl cyclopentenyl cation and pentamethylbenzenium ion have been detected by ¹³C magic-angle spinning nuclear magnetic resonance (MAS NMR)^{[50, 53]} and Raman spectroscopy^[54], which were the active hydrocarbon pool species (active intermediates or transients) for the formation of light olefins. Based on the theoretical calculation, the deprotonation of 1, 3-dimethylcyclopentenyl cation produced 1, 3-dimethyl-1, 3-cyclopentadiene^[53], for which the activation energy barrier was only 2.2 kcal/mol higher than that for the parent ions^[50]. The activation energy barrier of 1, 3-dimethylcyclopentenyl cation reacting with trimethyl oxonium ion (forming dimethyl ether and 1, 3, 4-trimethyl cyclopentenyl cation) was only 33 kcal/mol, far below that needed for ethene or propene methylation. The methylation of dimethyl cyclopentadiene was much easier than that of ethene, propene, or polymethylbenzene. Second, as found by Cui et al^[55], toluene could react with deuterium-methoxy, forming deuterated aromatics. The possible mechanism might be exactly the "ring expansion-contraction pairing". Third, the 1, 3-dimethylcyclopentenyl cation could undergo a series of reactions, forming toluene^[56].

  We then speculate that the MTP or MTO reactions may follow the "methylation-based ring expansion-contraction pairing" mechanism, as illustrated in Figure 6, with mesitylene as the active centers that form ethene and propene. The difference between methanol-to-propene and methanol-to-ethene lies in the position of mesitylene methylation (C or G) and corresponding transition states (3 or 5), which depends on the pore channels and acidity of H-ZSM-5. For H-ZSM-5 with large pores, the methylation occurs probably at the ortho position of methyl (decided by orientation effects of replacement base on aromatic hydrocarbon), thereby forming the 1, 2, 3, 5-tetramethyl arenium-ion(4). In small pores, the 2, 2, 4, 6-tetramethyl arenium-ion(2) are formed instead due to the steric hindrance. Subsequently, through contraction and elimination reactions (D or H), small molecules such as propene or ethene and the corresponding intermediate (transient) cations such as 1, 3-dimethylcyclopentenyl cation (3) or 1, 3, 4-trimethyl cyclopentenyl cation (5) are formed. Methyl cyclopentenyl cations (3 or 5), through ring expansion and hydride transfer (E or I), then produce toluene or xylene. The methylation and isomerization of toluene and xylene create the active centers of mesitylene, thereby completing the reaction cycle.

  3.   Conclusions

  A series of nanosized SiO₂-ZSM-5 zeolites were synthesized in the media of F^--OH^- and the effect of F^-/Al₂O₃ molar ratio on their catalytic performance in MTP was investigated. The results indicate that an increase in the F^-/Al₂O₃ molar ratio of the synthesis mixture leads to an increase in the surface content of microcrystalline SiO₂, accompanying with a decrease in the relative crystallinity, surface area, pore volume, and acid strength and density. With a F^-/Al₂O₃ molar ratio of 12, the SiO₂-ZSM-5 zeolite exhibits the best catalytic performance in MTP, with a selectivity of 45% to propene and a propene/ethene (P/E) ratio of greater than 10.

  On the basis of the "dual-acid-site active center" model and "methylation-based ring expansion-contraction pairing" mechanism, it was demonstrated that the transition state shape selectivity plays an important role in determining the product selectivity in MTP. The high quality MTP catalyst has two characteristics: appropriate acidity and narrow pore channels with large openings.
